The WX802 is a powerful 2-way performance speaker suitable for a wide variety of applications, ensuring true-to-nature, high fidelity reproduction of music and speech. It is fitted with a 1” dome tweeter and an 8” low-frequency loudspeaker, capable of delivering a power of 70 Watt. It can be used in standard 16 Ohm systems but also in 70/100V PA systems with power taps for 60 Watt, 30 Watt and 15 Watt. The elegant shaped synthetic enclosure is available in two different colours (black & white), making it blend into any environment, going from standard indoor home to special indoor design interiors. The included steel mounting bracket allows horizontal and vertical mounting as well as focusing of the speaker and an integrated advanced protection network protects the tweeter against overload.
| WX802MK2/B | Black version |
| WX802MK2/W | White version |
| Speaker type | 2-way | |
| Peak power handling | 280 W | |
| Program power handling | 140 W | |
| Continuous power (AES) | 70 W | |
| Impedance | 16 Ω | |
| Sensitivity (1W/1m) | 89 dB | |
| Sound Pressure (Max. W/1m) | @ 16 Ω | 108 dB |
| @ 100 V | 106 dB | |
| Frequency | Response (± 3 dB) | 60 Hz – 17 kHz |
| Range (-10 dB) | 50 Hz – 20 kHz | |
| Crossover | Frequency | 2.4 kHz |
| Type | Passive built-in | |
| Dispersion | Horizontal | 110° |
| Vertical | 110° | |
| Drivers | HF | 1” |
| LF | 8” | |

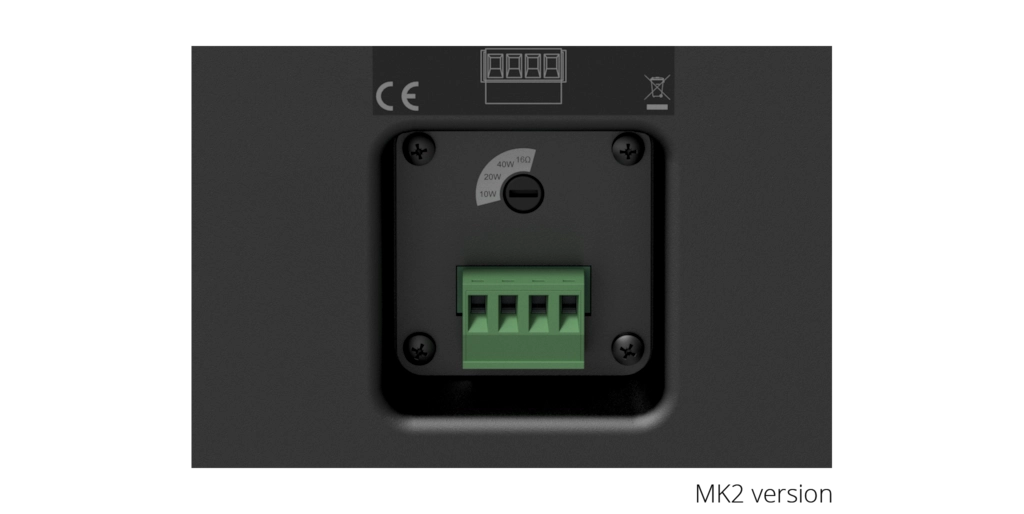

| Line Transformer Tappings | 1 | 83 Ω – 100 V / Not used – 70 V / 60 W |
| 2 | 167 Ω – 100 V / 60 W – 70 V / 30 W | |
| 3 | 333 Ω – 100 V / 30 W – 70 V / 15 W | |
| 4 | 667 Ω – 100 V / 15 W – 70 V / 7.5 W | |
| Dimensions | 358 x 276.1 x 285.6 mm (W x H x D) (Incl. bracket) |
| Weight | 7.5 kg |
| Operating temperature | -25 °C ~ 70 °C |
| Construction | ABS |
| Mounting & handling | Mounting bracket |
| Front finish | Steel grill |
| Colours | Black (RAL9005) (WX802/B, WX802MK2/B) |
| White (RAL9003) (WX802/W, WX802MK2/W) |
Bars & Restaurants |
Sporting facilities |
Retail |
Clubs |
Residential |
Corporate |
