WX502

Universal wall speaker 5 1/4″
  • 1″ Dome tweeter
  • 5 1/4″ Low frequency loudspeaker
  • Vertical and horizontal mounting

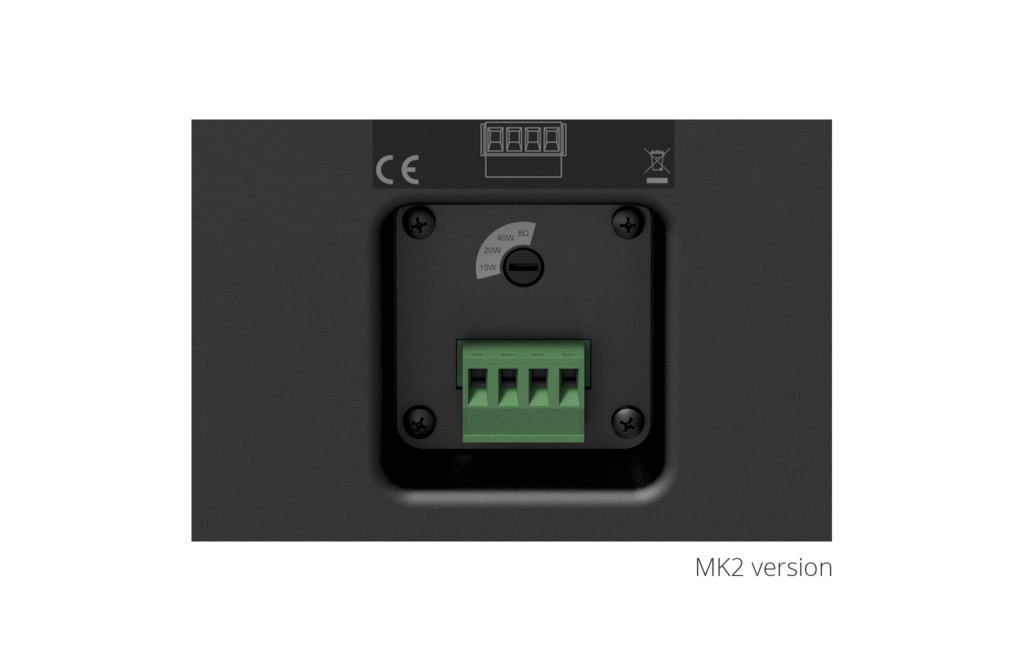

  • Terminal block connection (MK2 version)
  • Multi-tapping 70V / 100V line transformer
5 years  8 Ohm   70/100 V

The WX502 is a powerful 2-way performance speaker suitable for a wide variety of applications, ensuring true-to-nature, high fidelity reproduction of music and speech. It is fitted with a 1” dome tweeter and a 5 1/4”low-frequency loudspeaker, capable of delivering a power of 50 Watt. It can be used in standard 8 Ohm systems but also in 70/100V PA systems with power taps for 40 Watt, 20 Watt and 10 Watt. The elegant shaped synthetic enclosure is available in two different colours (black & white), making it blend into any environment, going from standard indoor home to special indoor design interiors. The included steel mounting bracket allows horizontal and vertical mounting as well as focusing of the speaker and an integrated advanced protection network protects the tweeter against overload.



Technical specifications

Available models
WX502MK2/B Black version
WX502MK2/W White version
System specifications
CrossoverFrequency2.5 kHz
TypePassive built-in
DriversHF1”
LF5”
FrequencyRange (-10 dB)55 Hz – 20 kHz
Response (± 3 dB)70 Hz – 18 kHz
Impedance8 Ω
Ingress Protection ratingIP40
Peak power handling200 W
Program power handling100 W
Sensitivity (1W/1m)87 dB
Sound Pressure (Max. W/1m)@ 100 V102 dB
@ 8 Ω104 dB
Speaker type2-way
Continuous power (AES)50 W
DispersionHorizontal110°
Vertical110°
Line Transformer Tappings1125 Ω – 100 V / Not used – 70 V / 40 W
2250 Ω – 100 V / 40 W – 70 V / 20 W
3500 Ω – 100 V / 20 W – 70 V / 10 W
41000 Ω – 100 V / 10 W – 70 V / 5 W
Product Features
Dimensions219 x 146 x 184.4 mm (W x H x D) (Incl. bracket)
Weight2.75 kg
Operating temperature-25 °C ~ 70 °C
ConstructionABS
Mounting & handlingMounting bracket
Front finishSteel grill
ColoursBlack (RAL9005) (WX502MK2/B)
White (RAL9003) (WX502MK2/W)
AccessoriesIncludedMounting bracket
Recommended applications
Bars & Restaurants
Sporting facilities
Residential
Clubs
Retail
Corporate



Speaker matrix
