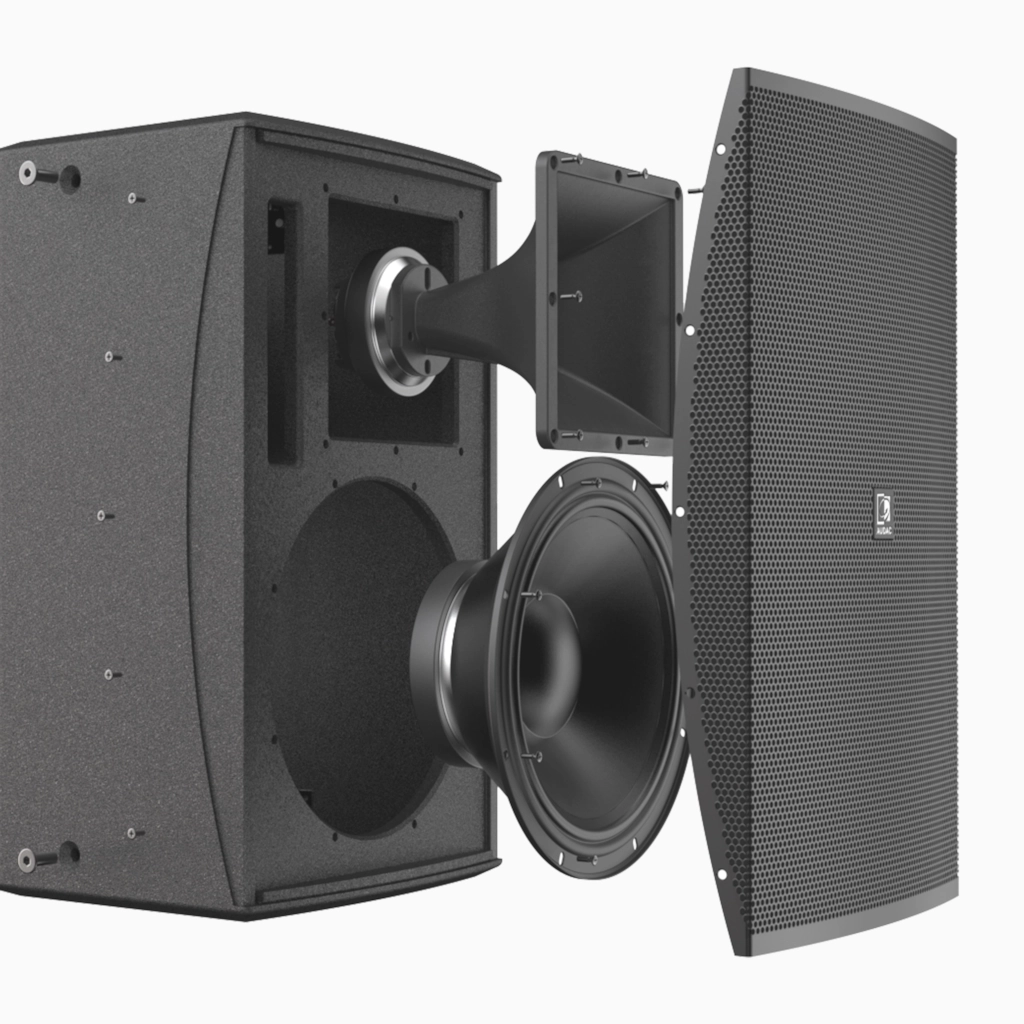

The VEXO1xx series are compact high performance 2-way loudspeakers and come in 5 different (active or passive) models. The low-frequency transducer, which is made out of high-quality materials, is combined with a 1″ (VEXO106), 1.4″ (VEXO108) or 1.7″ (VEXO110, VEXO112 & VEXO115) voice coil compression driver, enabling high sound pressure levels and a tight driver response.
Thanks to the unique driver composition, the VEXO106 delivers a clear and natural sound with a continuous power of 125 Watts and a maximum power of 500 Watt. The frequency response (±3dB) starts from 80Hz up to 25 kHz and the sensitivity (1W/1m) reaches 92dB while a maximum continuous sound pressure level from 113dB can be achieved.
Powerful sound experience
The most compact VEXO100 series models pack a surprising punch. For its compact size, the VEXO106 plays in a different league, offering unrivaled brilliance and a high power output.
The VEXO1xx series are compact high performance 2-way loudspeakers and come in 5 different (active or passive) models. The low-frequency transducer, which is made out of high-quality materials, is combined with a 1″ (VEXO106), 1.4″ (VEXO108) or 1.7″ (VEXO110, VEXO112 & VEXO115) voice coil compression driver, enabling high sound pressure levels and a tight driver response.
Thanks to the unique driver composition, the VEXO106 delivers a clear and natural sound with a continuous power of 125 Watts and a maximum power of 500 Watt. The frequency response (±3dB) starts from 80Hz up to 25 kHz and the sensitivity (1W/1m) reaches 92dB while a maximum continuous sound pressure level from 113dB can be achieved.
| VEXO106/B New | Black version |
| VEXO106/W New | White version |
| Speaker type | 2-way | |
| Peak power handling | 500 W | |
| Program power handling | 250 W | |
| Continuous power (AES) | 125 W | |
| Impedance | 8 Ω | |
| Sensitivity (1W/1m) | 92 dB | |
| Max SPL (Continuous) | 113 dB | |
| Frequency | Response (± 3 dB) | 80 Hz – 25 kHz |
| Range (-10 dB) | 63 Hz – 20 kHz | |
| Crossover | Type | Passive built-in |
| Dispersion | Horizontal | 110° |
| Vertical | 90° | |
| Drivers | HF | 1” Compression driver |
| LF | 6.5” | |
| Connectors | 2 x Speakon compatible (Linkthrough) | |
| Dimensions | 196 x 355 x 205 mm (W x H x D) | |
| Weight | 6.33 kg | |
| Construction | 15 mm Multiply Plywood with Polyurea coating | |
| Front finish | Powder coated steel grill with acoustical foam | |
| Mounting & handling | Rigging points | 1 x M8 (bottom) |
| 1 x M8 (top) | ||
| 1 x M10 – drop safety (rear) | ||
| Accessories | Optional | 70V/100V transformer module |
| MBK106V – Mounting bracket for VEXO106 | ||
| MBK500 – Two-way revolving mounting bracket | ||
| Colours | Black & White | |
