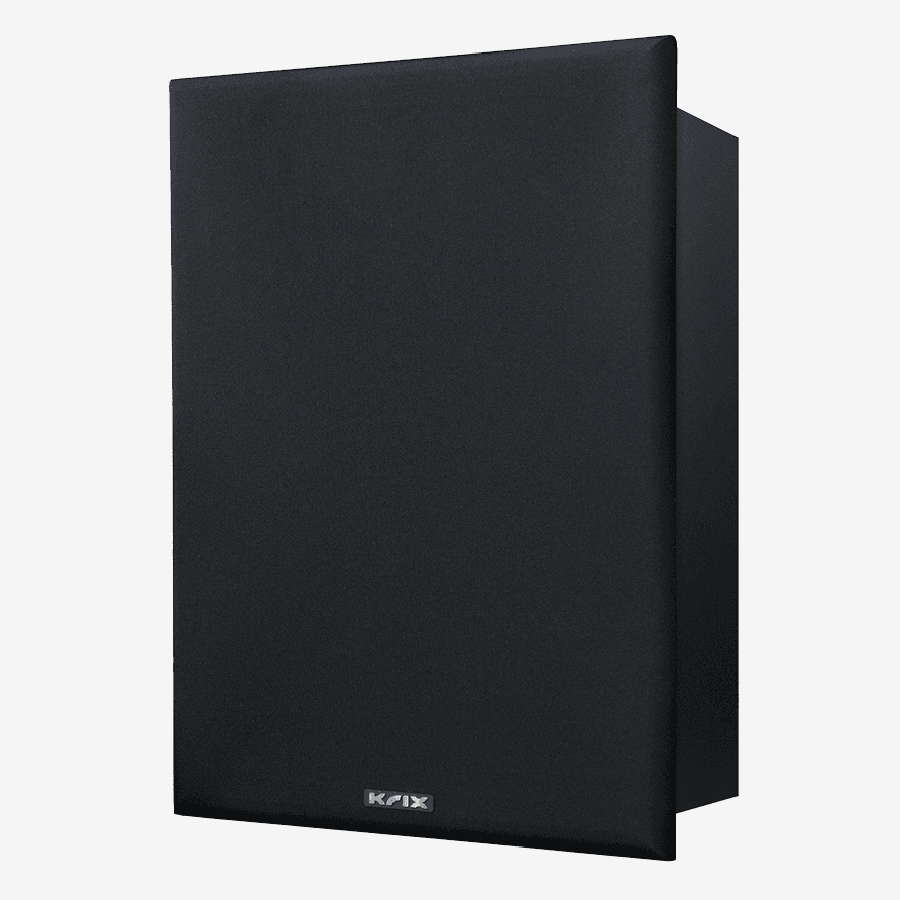

KRIX+PHONIX IN-WALL

With easy installation, the Phonix In-Wall delivers surround effects with clarity and power, putting you in the middle of the action.

For all-encompassing cinema surround sound in a concealed form, the Phonix In-Wall provides an immersive home theatre experience as a side surround, rear surround or ceiling effect speaker.

Best for use in 5.1, 7.1 or the new immersive sound formats, this dedicated home cinema speaker offers high power handling with low frequency extension down to 45Hz in a neat in wall package.

The hefty 165mm bass driver has a 33mm voice coil wound on high powered aluminium former, with ventilated spider and aluminium flux stabilisation ring for low distortion. The paper cone and surround of the bass driver have been developed to provide the smoothest possible response and a dynamic and non-fatiguing vocal mid-band.

The high frequency drive unit is a specially-damped, high power, 26mm doped fabric dome tweeter. Combined with the crossover network which has been designed and built using close-tolerance, professional-grade components, the resulting sound is exceptionally smooth and well controlled.

The Phonix In-Wall can be fixed to plastered studwork or cabinetry via the 1.6mm thick faceplate. The optional extra to finish with a neat black cloth grille is also available, making the Phonix In-Wall a versatile yet powerful surround sound speaker.

For the ultimate cinema experience at home, play it through Krix.



SPECIFICATIONS

Frequency range45Hz-20kHz (-10dB)
Power handling50-150 Watts RMS recommended amplifier power
Sensitivity88dB for 2.83 volts at 1 metre
Impedance8 Ohms
Configuration2-way
Enclosure typeBass reflex, front vented
Low frequency driverSingle 165mm (6½”) laminated polypropylene cones. 33mm (1¼”) voice coil wound on high powered aluminium former, with ventilated spider and aluminium flux stabilization ring for low distortion
High frequency driver26mm (1”) doped fabric dome with large roll surround. Ferro fluid cooled
Crossover point1.8kHz
Input terminalsGold plated binding posts
Cut-out dimensions393mm high x 265mm wide recommended
Dimensions388mm high x 260mm wide x 120mm deep cabinet

453mm high x 325mm wide x 1.6mm thick faceplate

Weight7kg each
