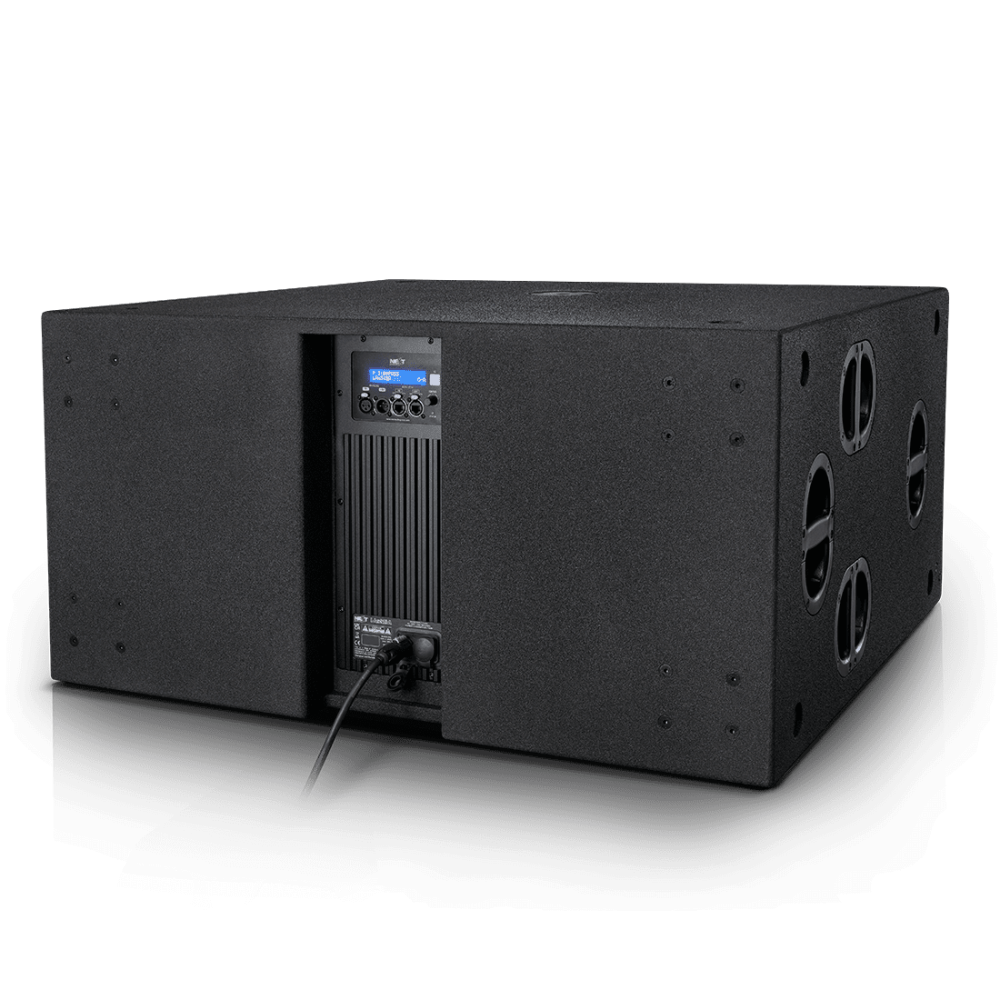

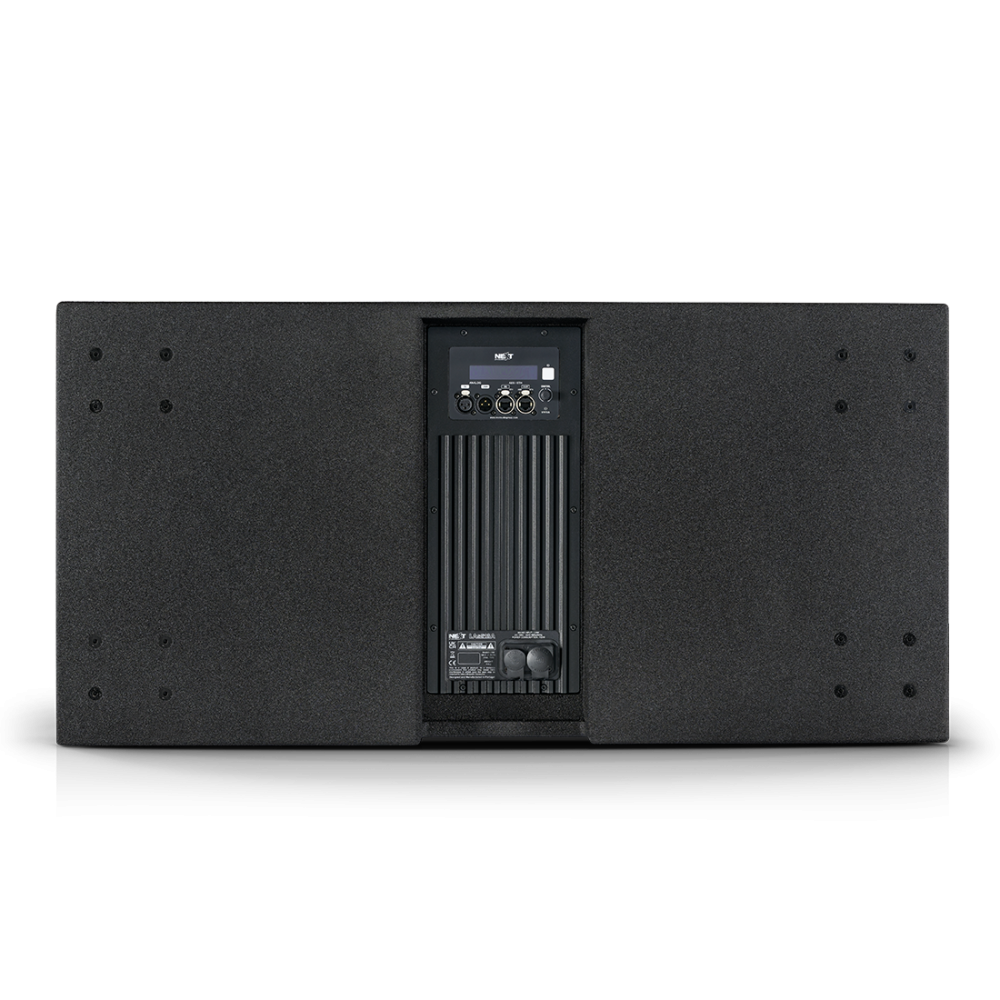

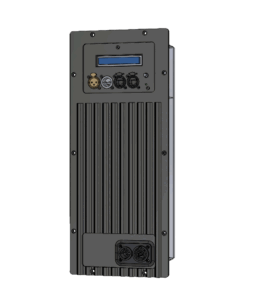

Introducing the LAs518A, the ultimate compliment to the LA210x. Boasting dual long-excursion, high-power neodymium 18” drivers, the LAs518A delivers unparalleled low-frequency performance. With optimized port tuning and exceptional peak-to-peak excursion capability, the LAs518A ensures deep, resonant bass down to 24 Hz at -10 dB. Encased in a sturdy 89 kg front-loaded bass reflex enclosure, the LAs518A is equally adept for installation and rental applications, delivering a maximum peak SPL of 143 dB. Driving the LAs518A is a lightweight, highly efficient 2-channel class D amplifier module, capable of delivering up to 5000 W with remarkable precision and detail. Equipped with an integrated universal mains power supply featuring PFC, this subwoofer guarantees consistent performance worldwide. Experience the pinnacle of subwoofer technology with the LAs518A, where power, precision, and versatility converge to elevate your audio experience to new heights.

The Heart

Elegant Use

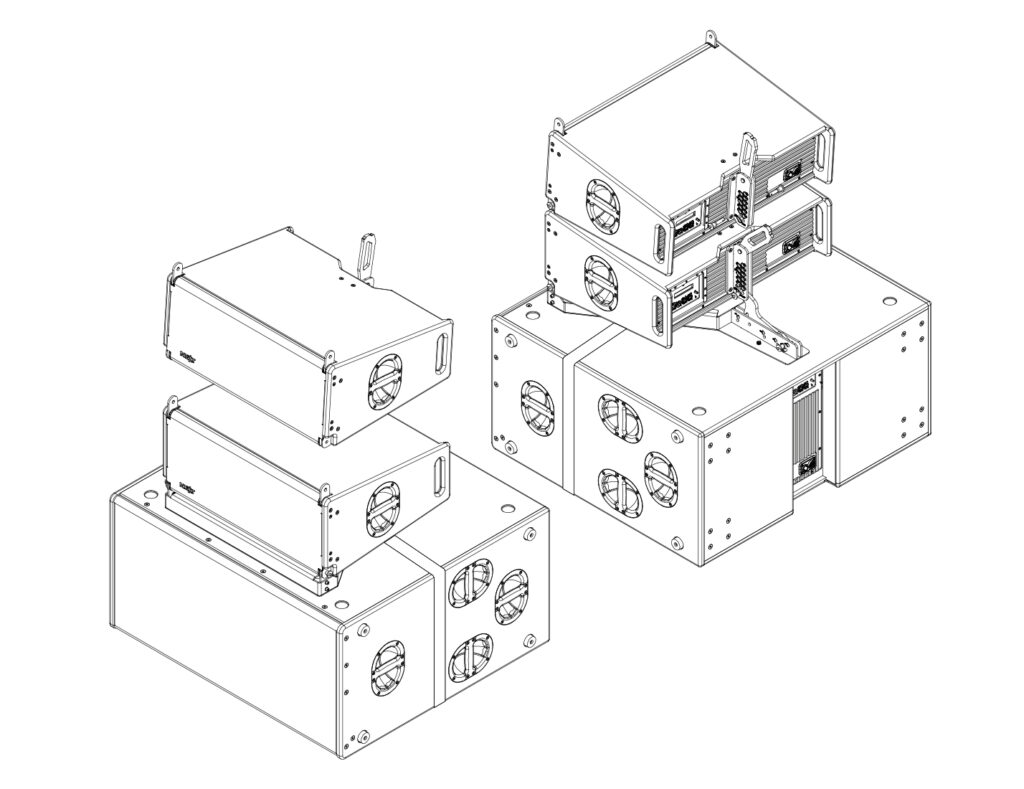

To keep your LA210x/LAs518A system always discreet and elegant, you can use the Ground Stack Sub Adapter to have a non-obtrusive look on the transition between LA210x and LAs518A.

X-NET Software

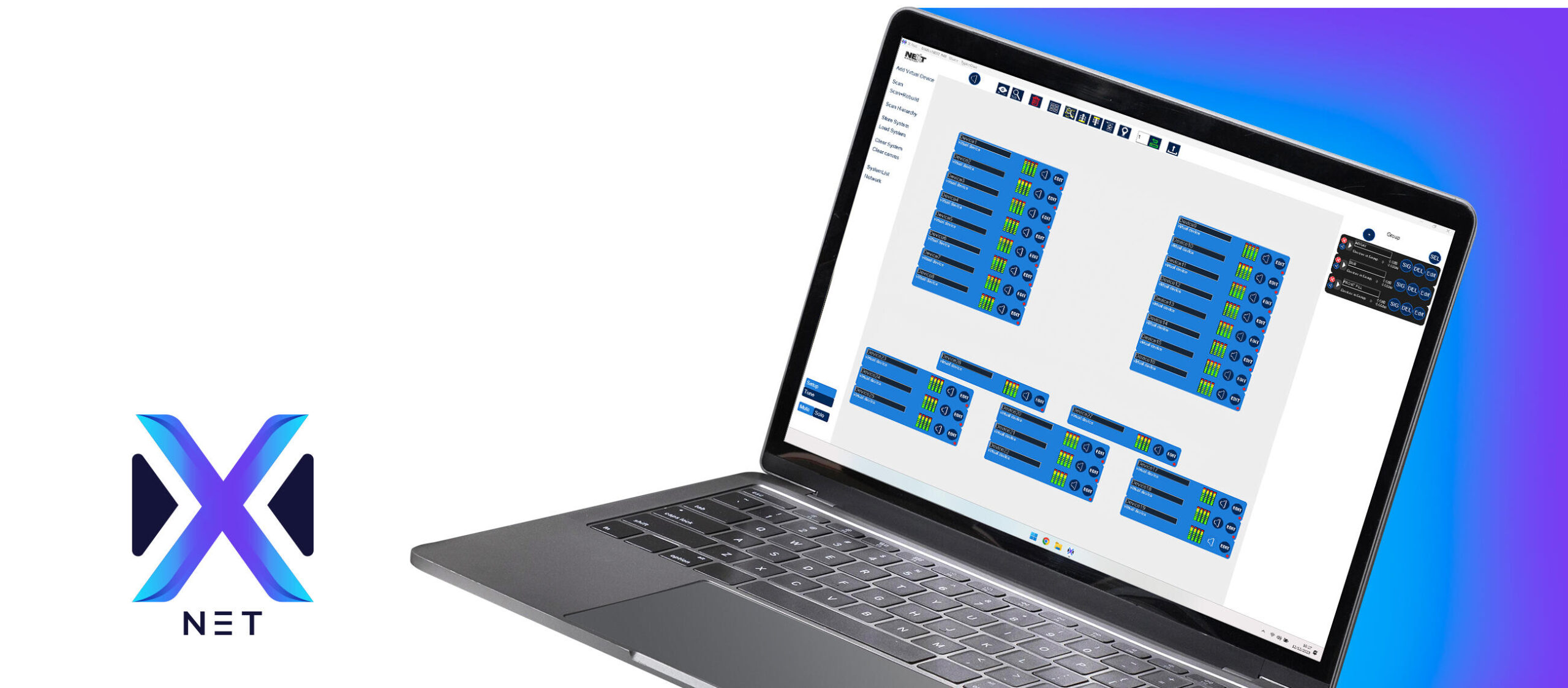

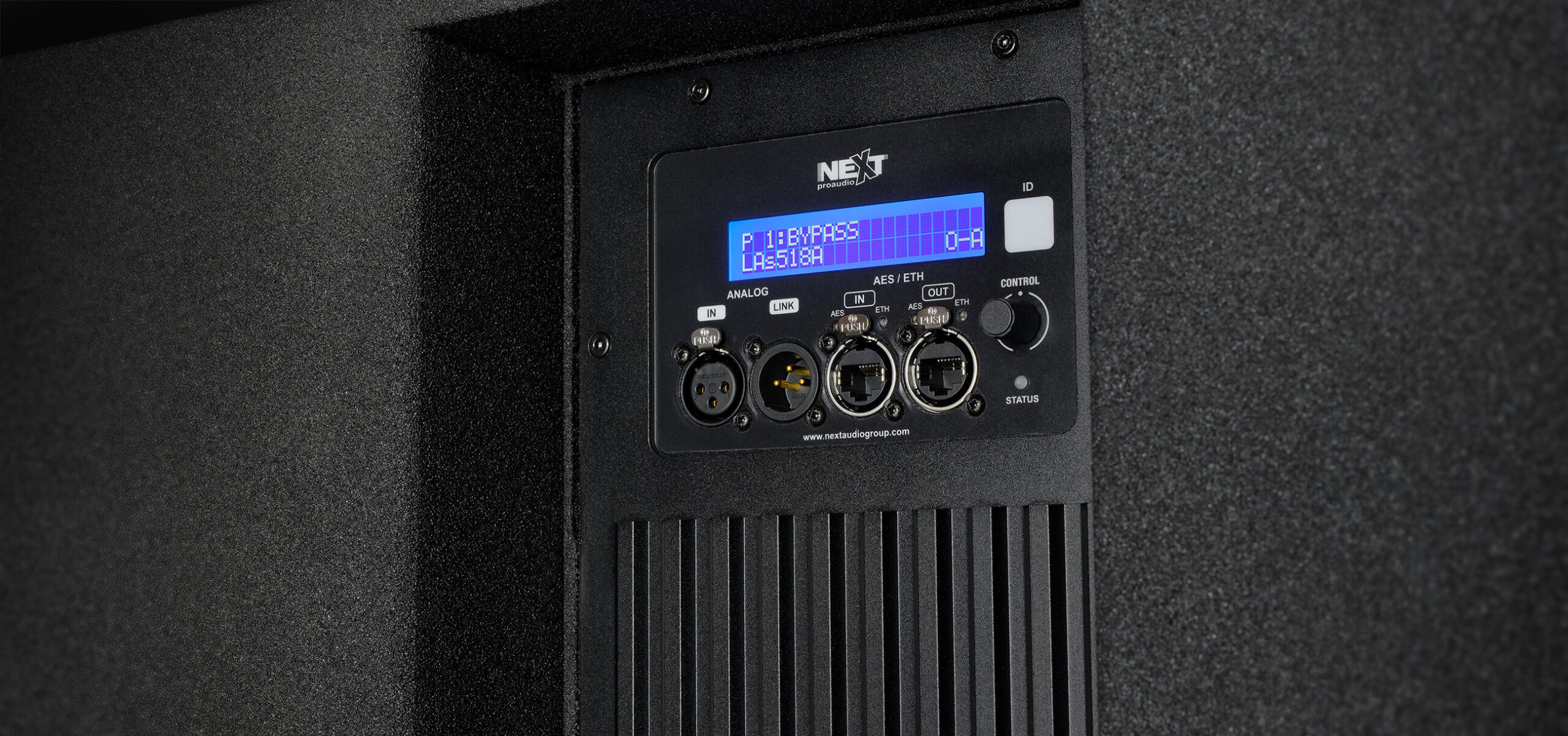

At its core lies an advanced 96 kHz/40-bit SHARC DSP engine, monitored via a built-in LCD screen with a preset loading encoder. Additionally, remote monitoring and control through Ethernet connectivity allow seamless integration with a PC, offering unparalleled convenience. The X-NET PC software enables effortless fine-tuning of your system’s sound, with the ability to control multiple devices simultaneously through a grouping facility.

Technical specifications

Product Type		Active High Power Reflex Subwoofer
Frequency Response (-6dB)		28Hz – 250Hz
Low Frequency Extension (-10dB)		24Hz
Maximum SPL Pgm/Peak		141dB / 144dB (Half-Space) (calculated)
Subwoofer Driver		2 x 18″ (460mm) / 4″ (100mm) VC, high excursion, B&C custom speaker
Amplifier Technology		2-Channel UMAC Class D – Full Bandwidth PWM Modulator With Ultra-Low Distortion
Amplifier Power		RMS: 2800W / Program: 5000W / Peak: 7000W
Input Sensitivity		+8dBu
Maximum Input Level		+21.5dBu
DSP Technology		96kHz / 40 bit SHARC DSP
Latency		1.5ms
DSP Adjustable Parameters		Filters: PEQ, FIR, hi/lo-shelving, all-pass, band-pass, hi/lo-pass | Limiters: RMS Voltage, Peak Voltage | Groups: Mute, Delay, Level, Polarity, EQ
DSP Presets		24 (4 User Presets)
Delay Adjustment		500ms (172m) on Input + 400ms (138m) on Groups
Control Type		Control via LCD and Encoder on the Back Panel | Control via Software using Ethernet – Max. Cable Length 70m
Audio Signal Inputs		Analog | AES (AESOP)
Input Connectors		1 x XLR | 1 x Neutrik EtherCON®
Audio Signal Outputs		Analog | AES (AESOP)
Output Connectors		1 x XLR | 1 x Neutrik EtherCON®
Protections		Clip Limiter | Temperature | Over Current | DC Protection | HF Protection
Operating Temperature Range		0ºC – 40ºC
Cooling Type		External Aluminum Heat Sink with Internal Speed Controlled Fans
Power Supply		UREC Universal Mains Switch Mode Power Supply (SMPS) with Power Factor Correction (PFC) and Standby Converter
Power Input		AC 100V – 240V 50Hz/60Hz
Mains Connector		Dual (IN/OUT) Neutrik powerCON TRUE1 TOP®
Power Consumption		700W
Special Features		Speaker Cabinet Auto-Identification via Software
Fittings		1 x M20 pole mount socket, 16 x M8 threaded inserts for optional wheel kit, 8 replaceable feet
Handles		4 on each side
Grille		Black Perforated Steel
Construction		Heavily braced, 18mm multi-laminate birch ply
Finish		Semi-Matte Black Polyurea Coating
Dimensions (WxHxD)		1030 x 516 x 920mm (40.55 x 20.31 x 36.22in)
Net Weight		89kg (196.2lb)
Shipping Weight		94kg (207.2lb)
Accessories		Rain Cover | Transportation Dolly | Ground Stack Accessory for LA210x
