NEXT LAm114xA Plus

Active Coaxial Stage Monitor

Yêu cầu tư vấn
Xem các dự án
LAm114xA PLUS is a plus edition of the famous LAm114xA, using a new DSP and Amplifier module, ethernet controlled via Software X-NET, keeping the same iconic design and dimensions.
To fulfil all the artist´s performance needs the LAm114xA PLUS aimed to provide the musicians a perfect listening on the most demanding situations. The LAm114xA Plus stage monitor incorporates advanced coaxial 14” B&C Custom made speaker and a high performance amplifier module, capable of generating 1,650W (rms) for a very high acoustic pressure, remotely monitored and controlled through ethernet by a PC using X-NET Software.

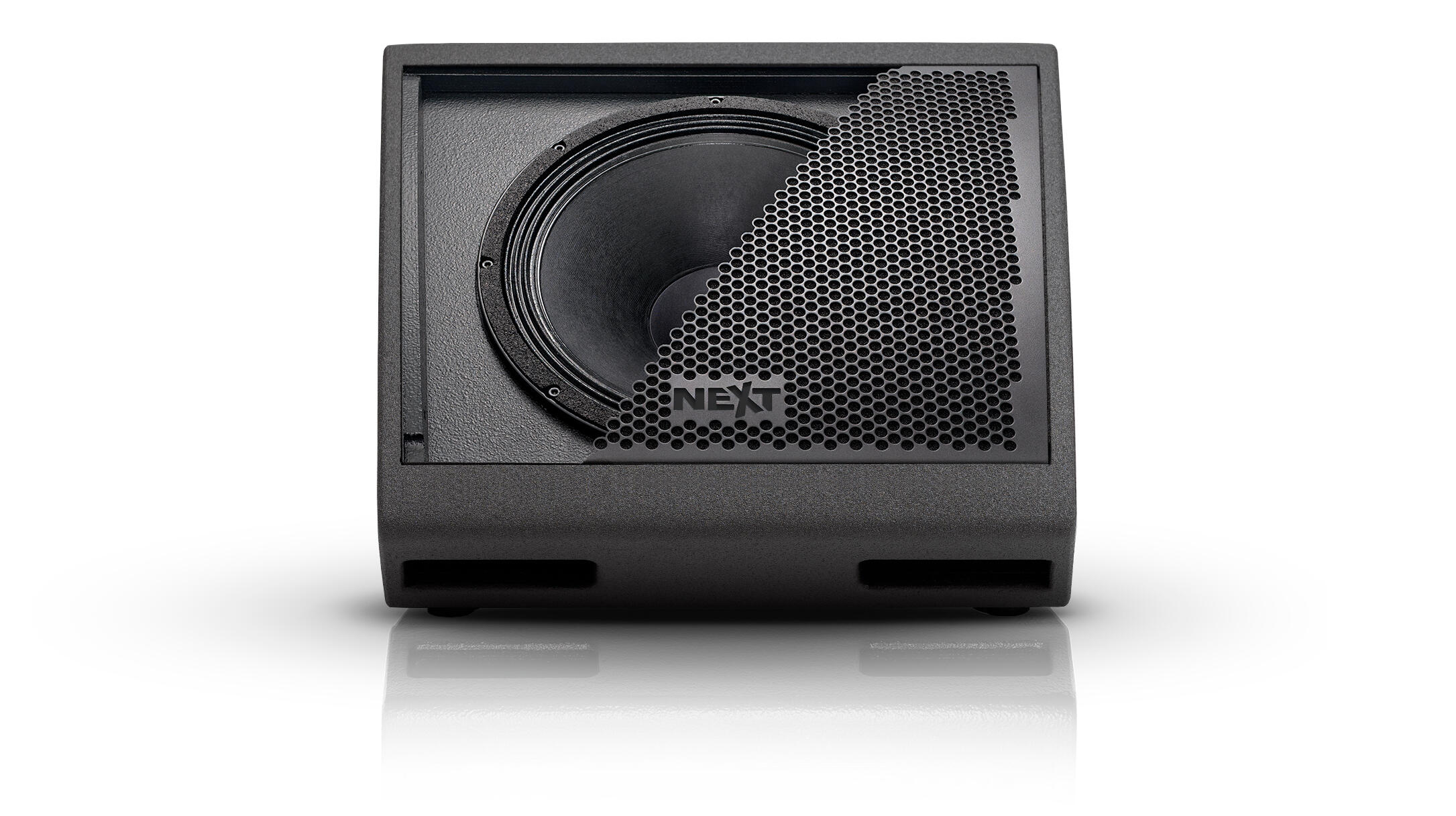

The design combines the voice reproduction clarity associated with 12” drivers with the bass extension typically of 15” speakers. The high-frequency reproduction is handled by a 2-inch exit, 3-inch voice coil, HF neodymium driver for the critical voice frequency range.


Versatile Use

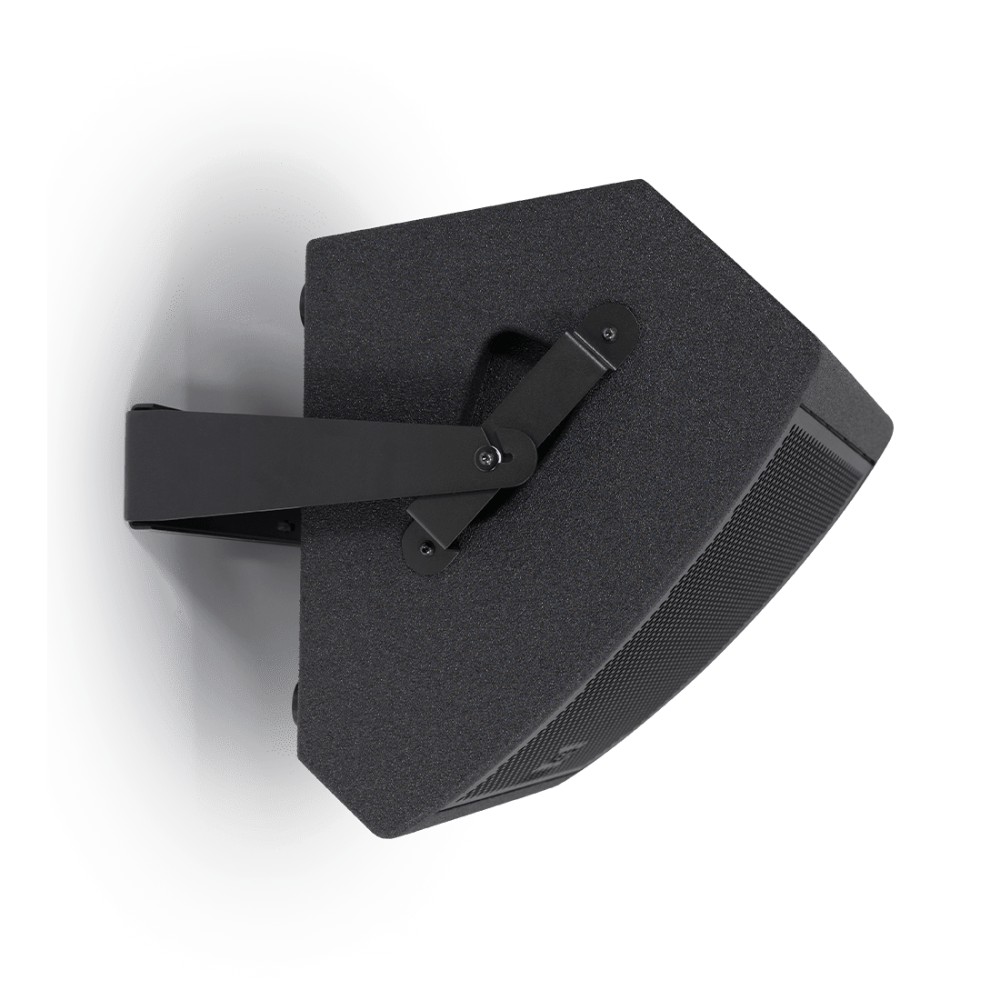

The LAm114xA Plus can be used on a tripod for portable solutions or on a u-bracket for installation.

Small Footprint

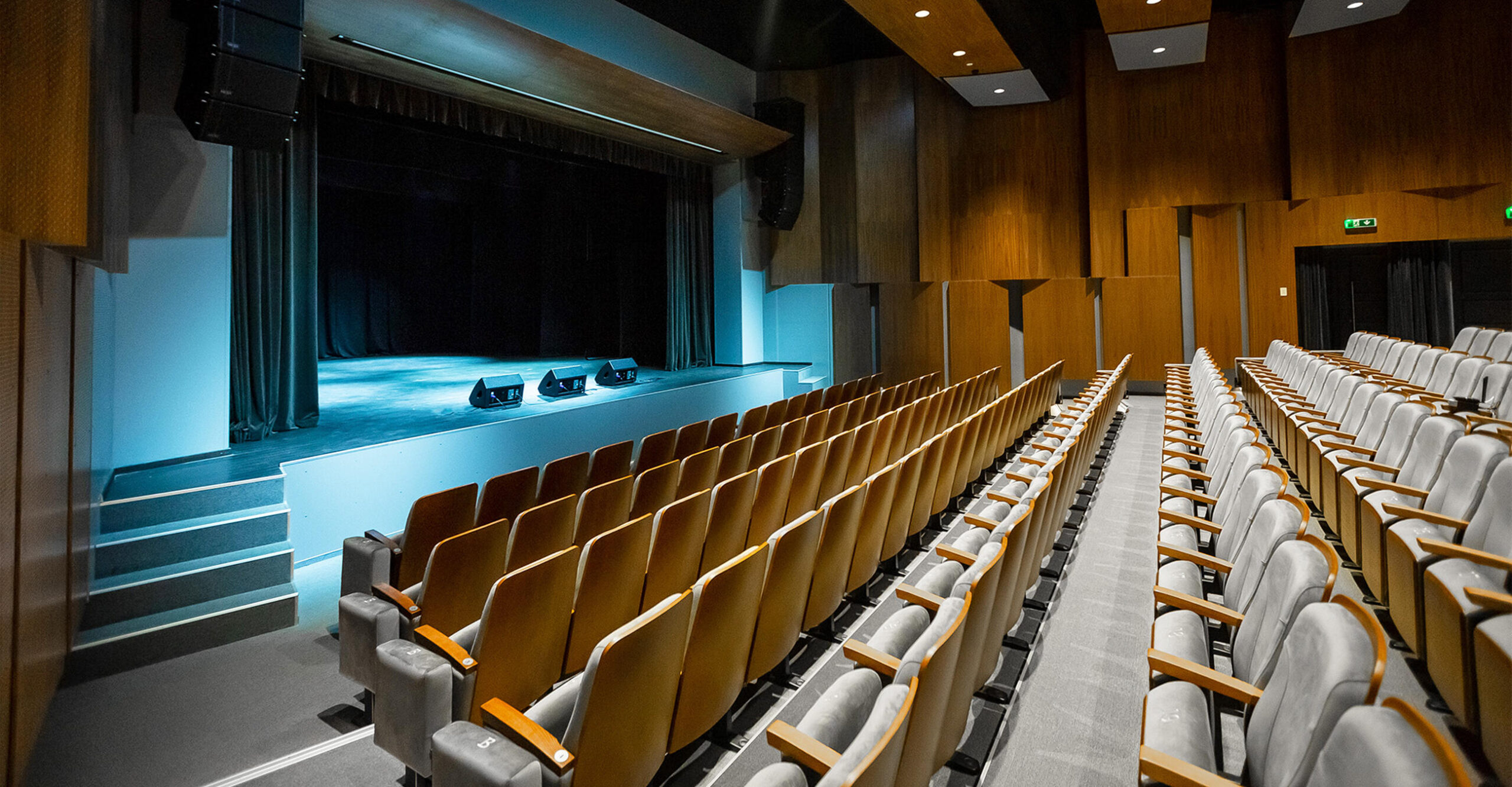

The cabinet’s small footprint and low weight, combined with the absolutely linear and extended response at very high-pressure levels, makes the LAm114xA PLUS the well suited to both small and large venue use.

Clear and Powerful

The design combines the voice reproduction clarity associated with 12” drivers with the bass extension typically of 15” speakers. The high-frequency reproduction is handled by a 2-inch exit, 3-inch voice coil, HF neodymium driver for the critical voice frequency range.

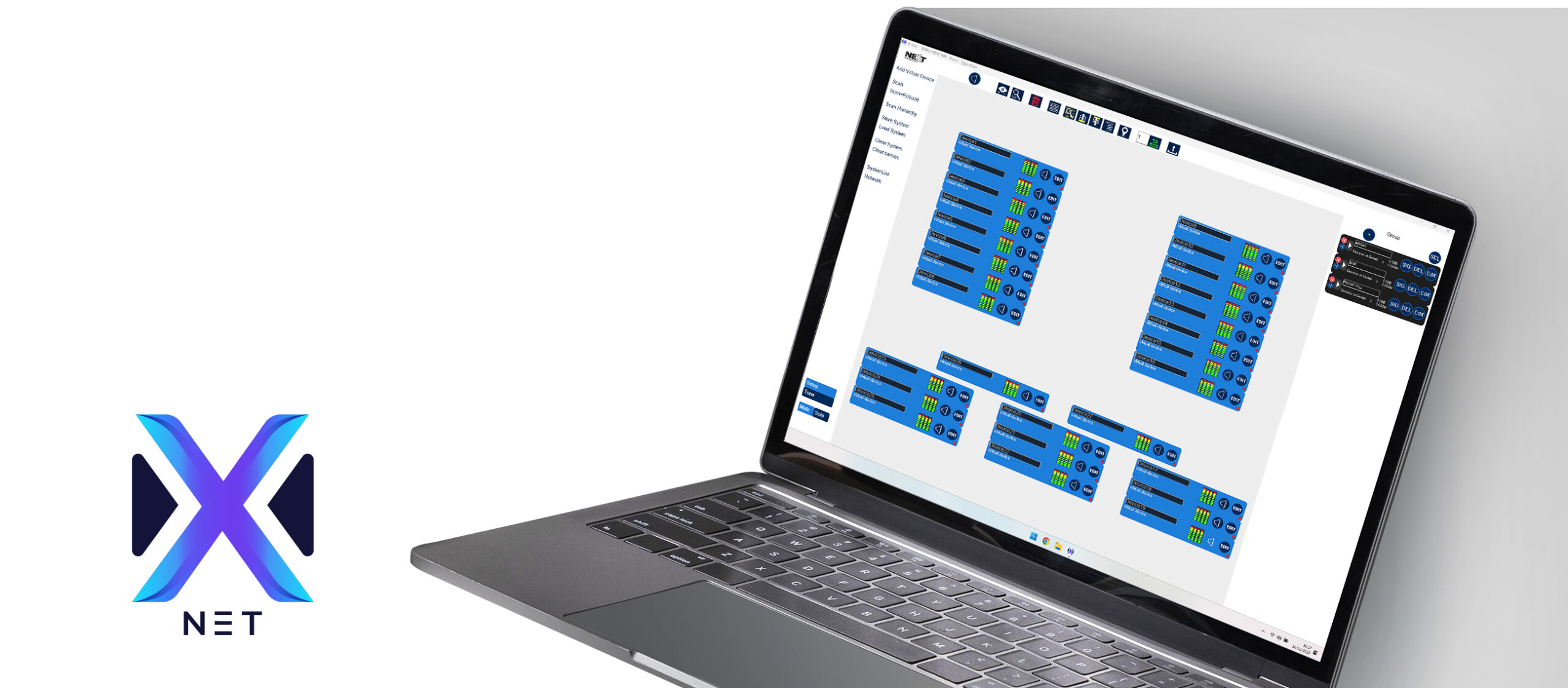

X-Net Software

Onboard, advanced, powerful 96kHz/40bit SHARC DSP engine, monitored by built-in LCD screen with a preset loading encoder, can be remotely monitored and controlled through ethernet by a PC using X-NET Software.
The full-featured X-NET Software automatically identifies each device and allows simultaneous control of multiple devices through grouping facility. Everything you need to fine-tune the sound of your system is right there.

Technical specifications

Product TypeActive Coaxial Stage Monitor
Frequency Response (-6dB)55Hz – 19,000Hz
Nominal Coverage (-6dB)80º Conical
Maximum SPL (Program/Peak)135dB / 138dB (Half-Space, Calculated)
Low Frequency Driver1 x 14″ (355mm) Neodymium B&C Custom Speaker, 3″ (76mm) Voice Coil
High Frequency Driver1 x 2″ (50.5mm) Exit, Neodymium B&C Custom Speaker, 3″ (76mm) Voice Coil
Amplifier Technology2-Channel UMAC Class D – Full Bandwidth PWM Modulator with Ultra-Low Distortion
LF Section Power1150W
HF Section Power500W
Input Sensitivity+8dBu
Maximum Input Level+21.5dBu
DSP Technology96kHz / 40-bit SHARC DSP
Latency1.5ms
DSP Adjustable ParametersFilters: PEQ, FIR, Hi/Lo-Shelving, All-Pass, Band-Pass, Hi/Lo-Pass | Limiters: RMS Voltage, Peak Voltage | Groups: Mute, Delay, Level, Polarity, EQ
DSP Presets24 Presets (4 User Presets)
Delay Adjustment500ms (172m) on Input + 400ms (138m) on Groups

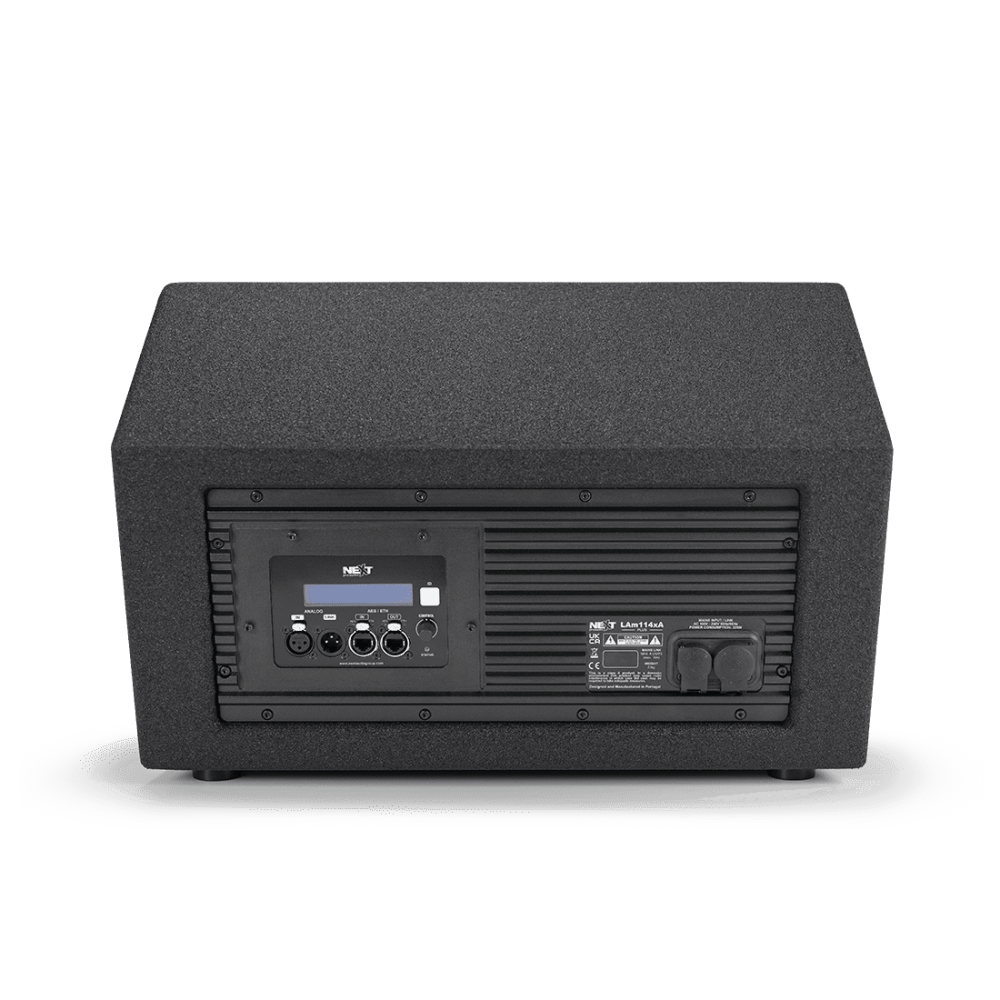

Control TypeVia LCD and Encoder on the Rear Panel; via Ethernet Software (Maximum Cable Length: 70m)
Audio Signal InputsAnalog | AES (AESOP)
Input Connectors1 x XLR | 1 x Neutrik EtherCON®
Audio Signal OutputsAnalog | AES (AESOP)
Output Connectors1 x XLR | 1 x Neutrik EtherCON®
ProtectionsClip Limiter, Temperature, Over Current, DC Protection, HF Protection
Operating Temperature Range0ºC – 40ºC
Cooling TypeExternal Aluminum Heat Sink with Internal Speed-Controlled Fan
Power SupplyUREC Universal Mains Switch-Mode Power Supply (SMPS) with Power Factor Correction (PFC) and Standby Converter
Power InputAC 100V – 240V, 50Hz/60Hz
Mains ConnectorDual (IN/OUT) Neutrik powerCON TRUE1 TOP®
Power Consumption225W
Special FeaturesSpeaker Cabinet Auto-Identification via Software

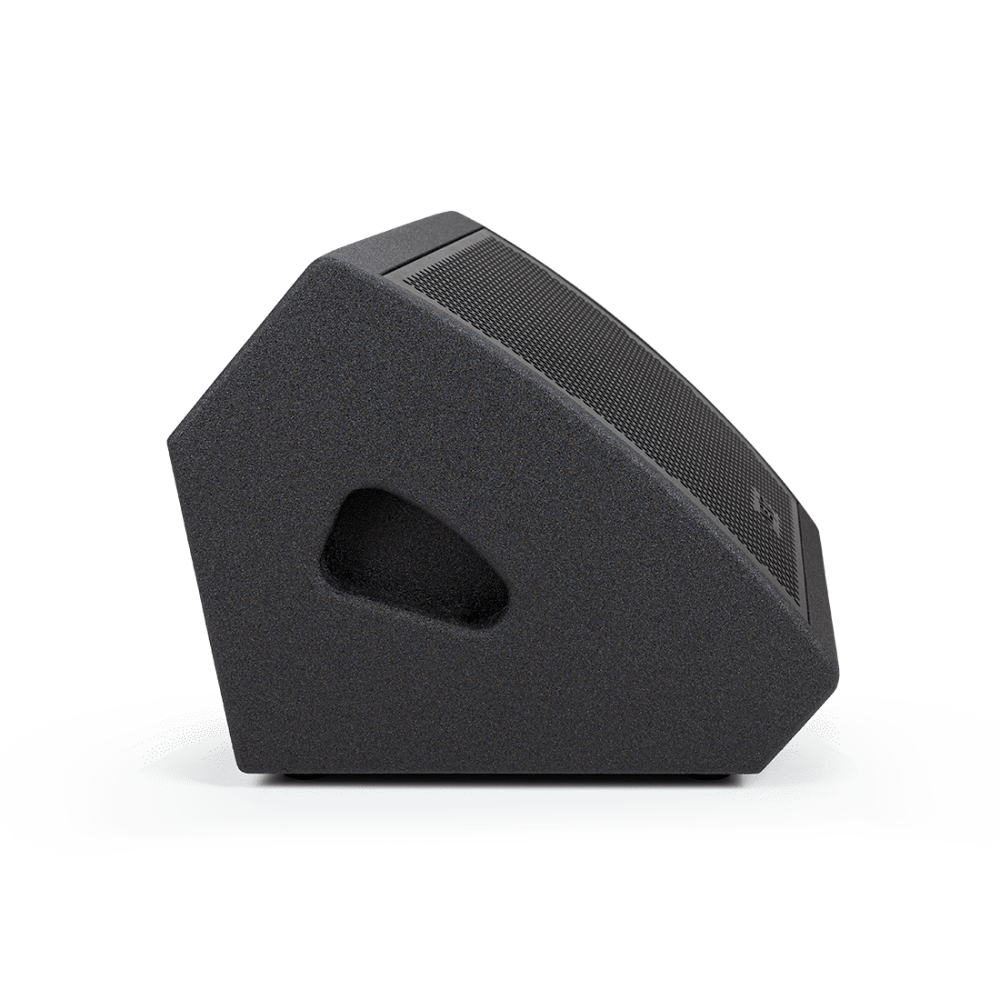

Handles1 on Each Side
GrilleBlack Perforated Steel
ConstructionMulti-Laminate Birch Plywood
FinishSemi-Matte Black Polyurea Coating
Dimensions (WxHxD)564 x 390 x 475 mm
Net Weight21kg (46.3lb)
AccessoriesSpeaker Cabinet Auto-Identification via Software
