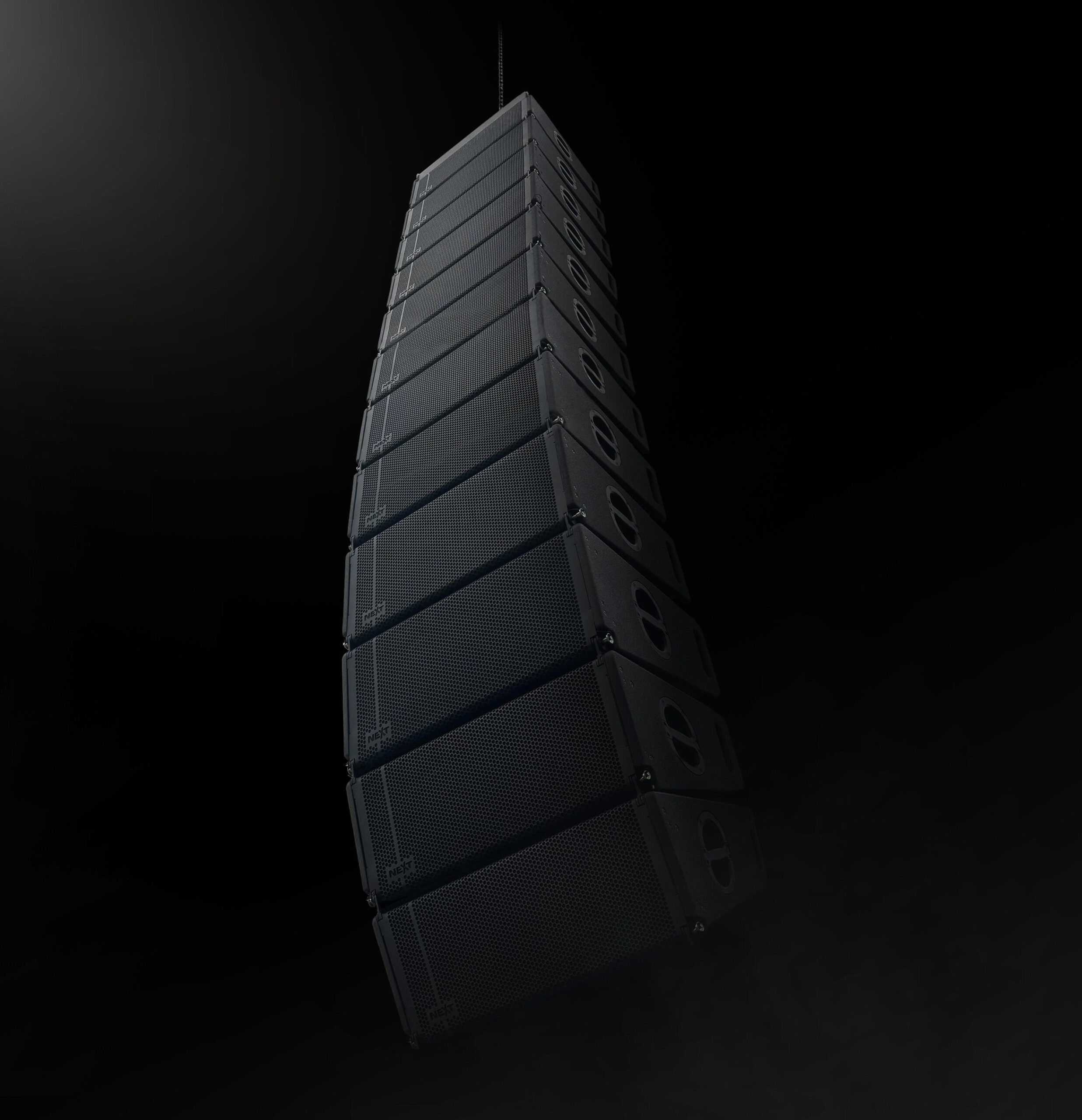

The LA210x is a medium format three-way, coaxial, active line array element designed to support a wide range of mid to large-sized touring applications and installations where easy to use, from transportation to installation and rigging, are critical. Built-in powerful DSP and amplification eliminates amplifier racks, long loudspeaker cables, and basic system calibration.

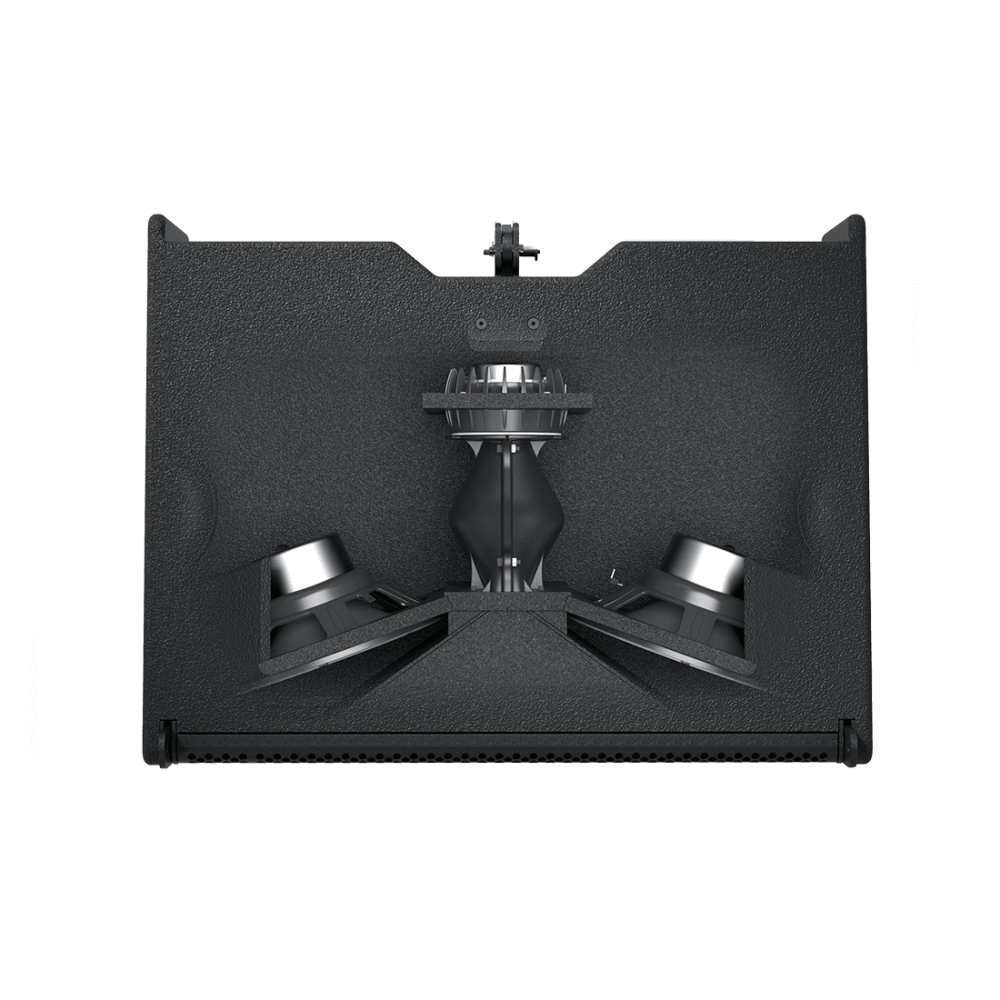

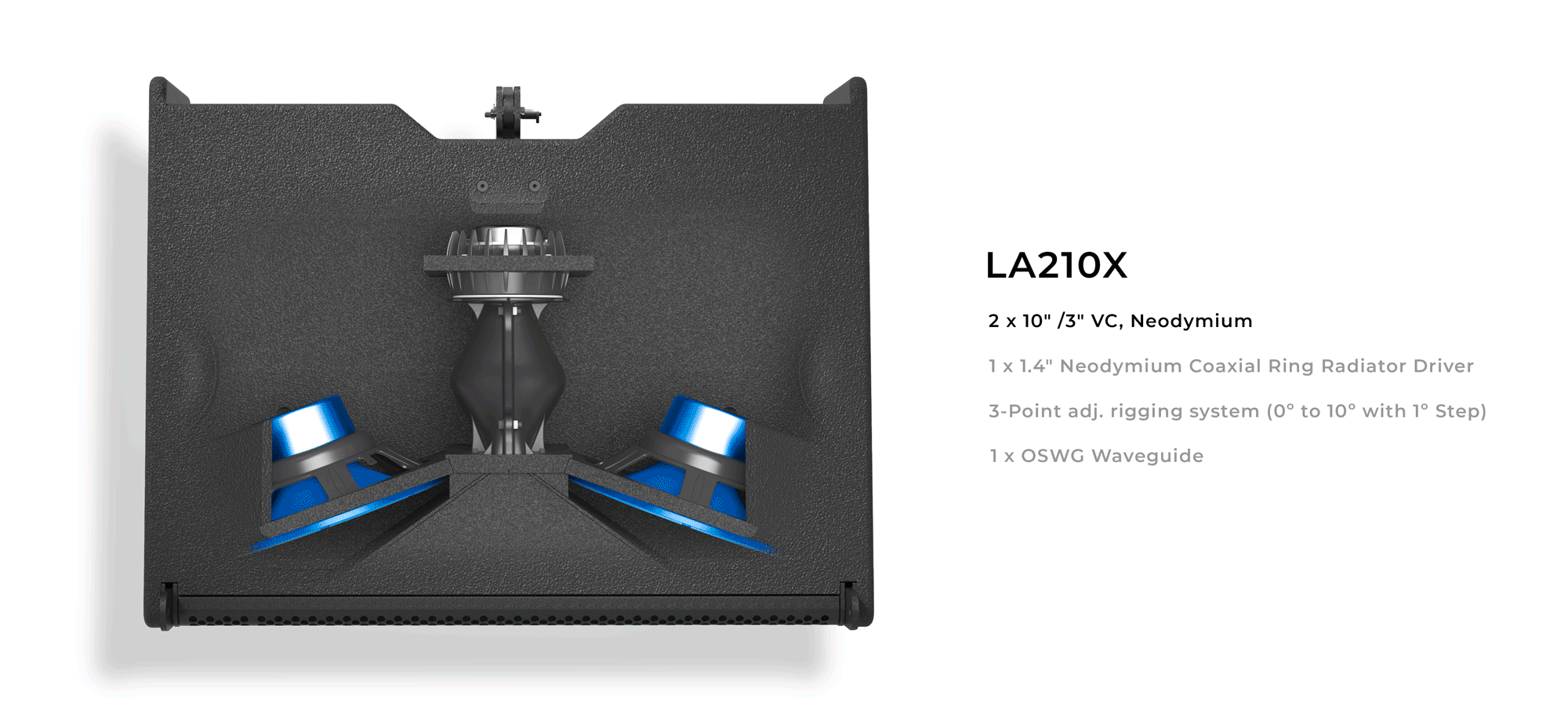

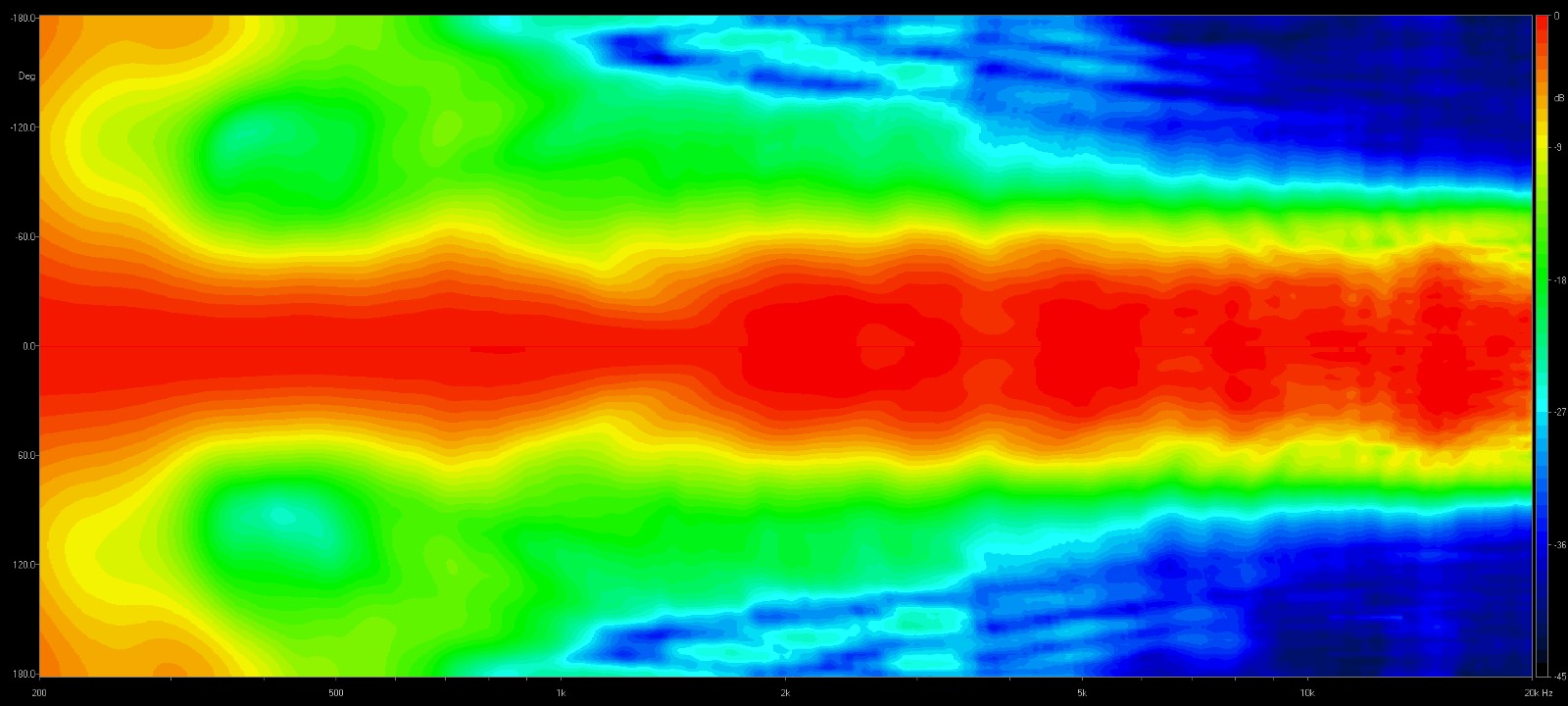

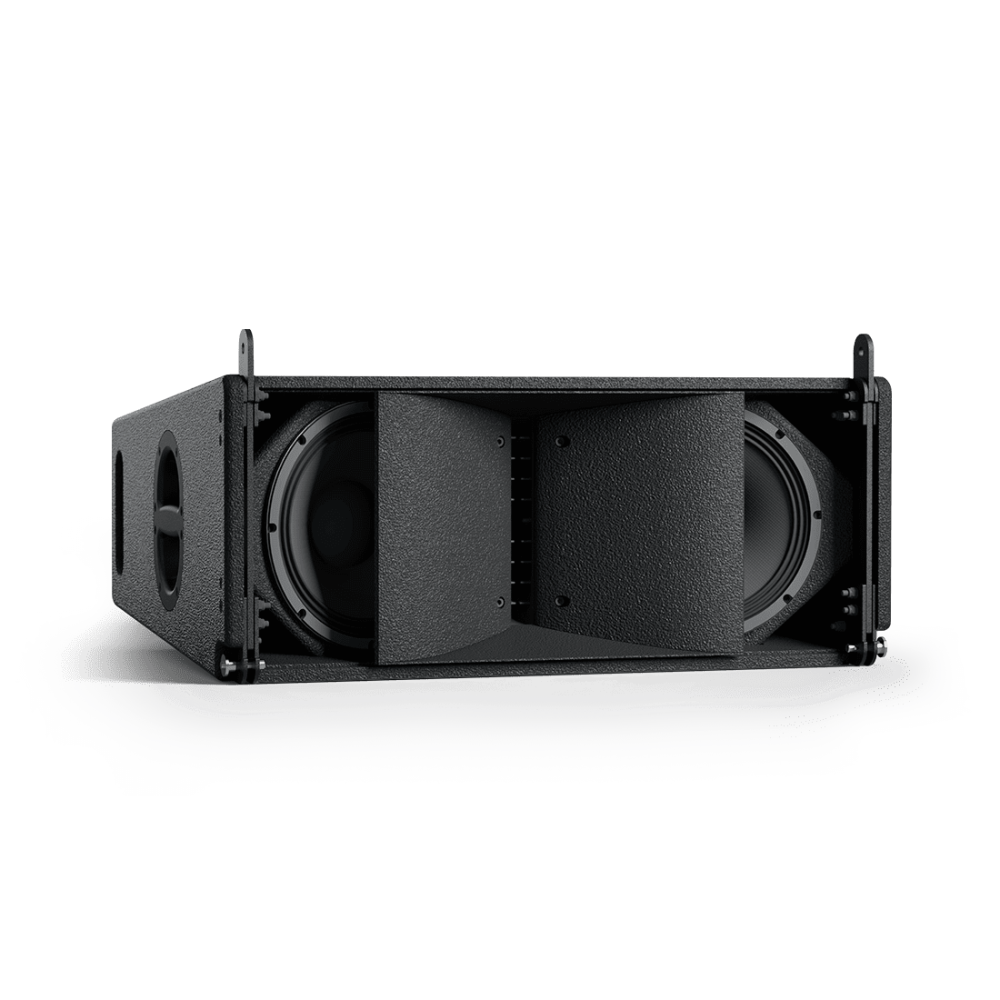

Custom made European transducers and a maximally optimized acoustic design provide excellent sound fidelity at very high SPL levels. The LA210x features dual 10  -inch (3-inch voice coil) neodymium woofers and a groundbreaking coaxial ring radiator loaded by an exclusively developed OSWG waveguide. This acoustic design delivers exceptional phase coherence and consistent coverage down to 300Hz and the most accurate transient reproduction

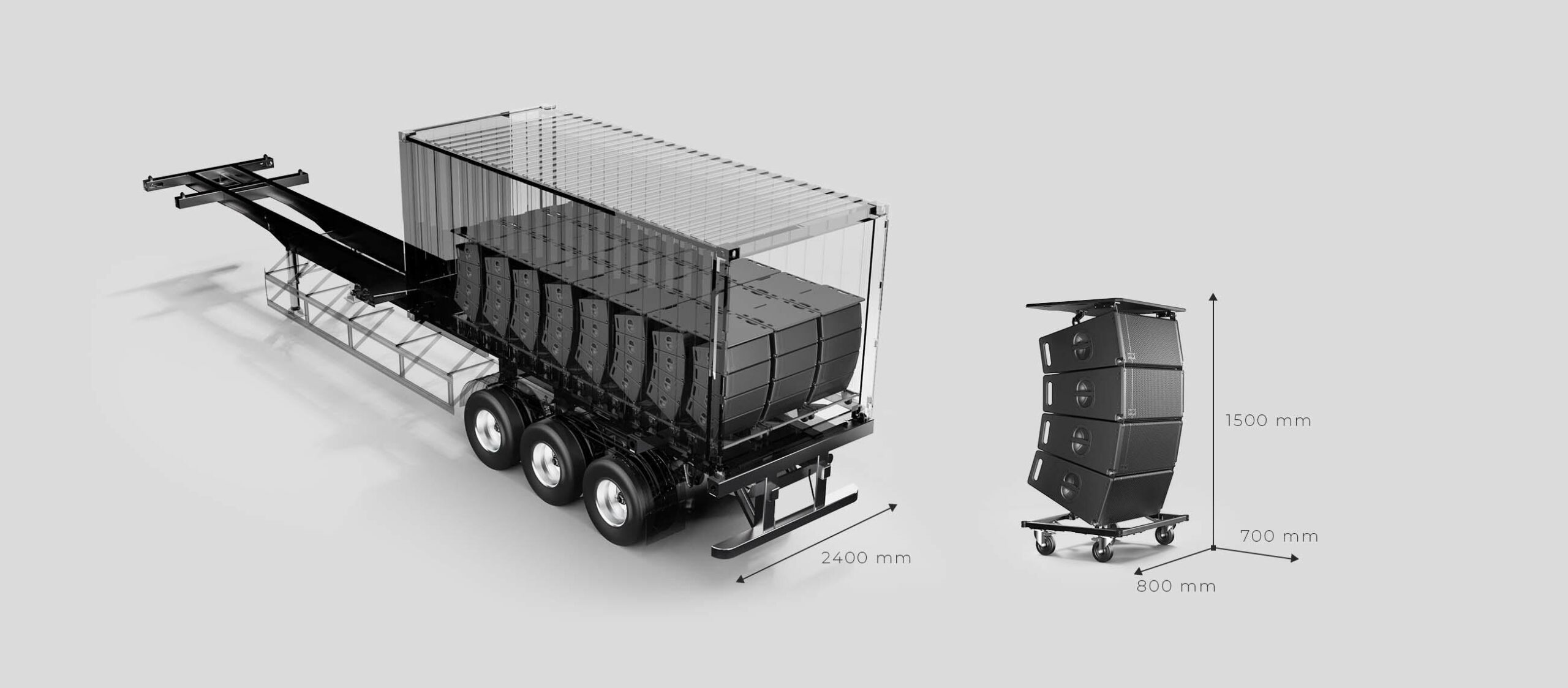

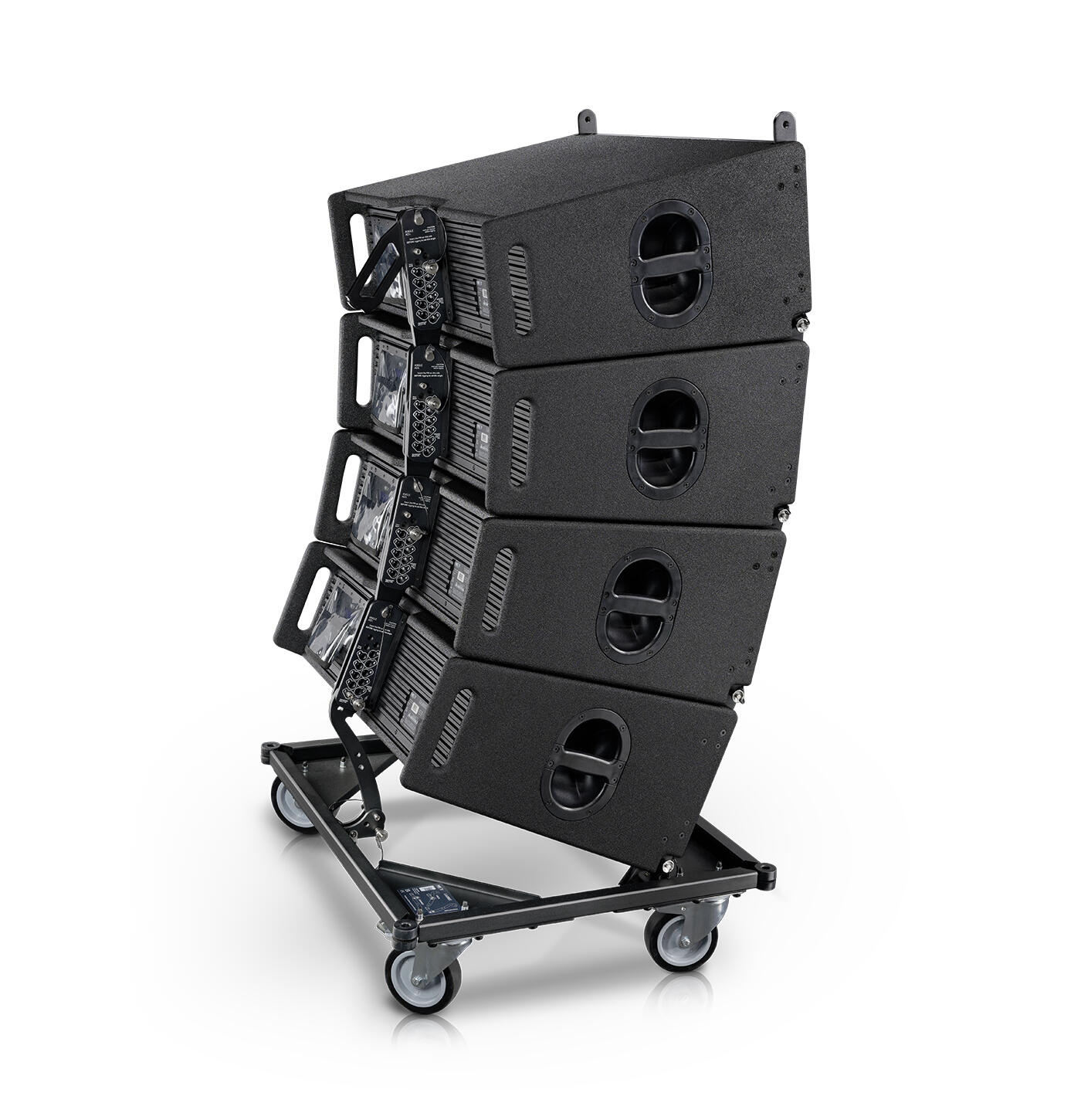

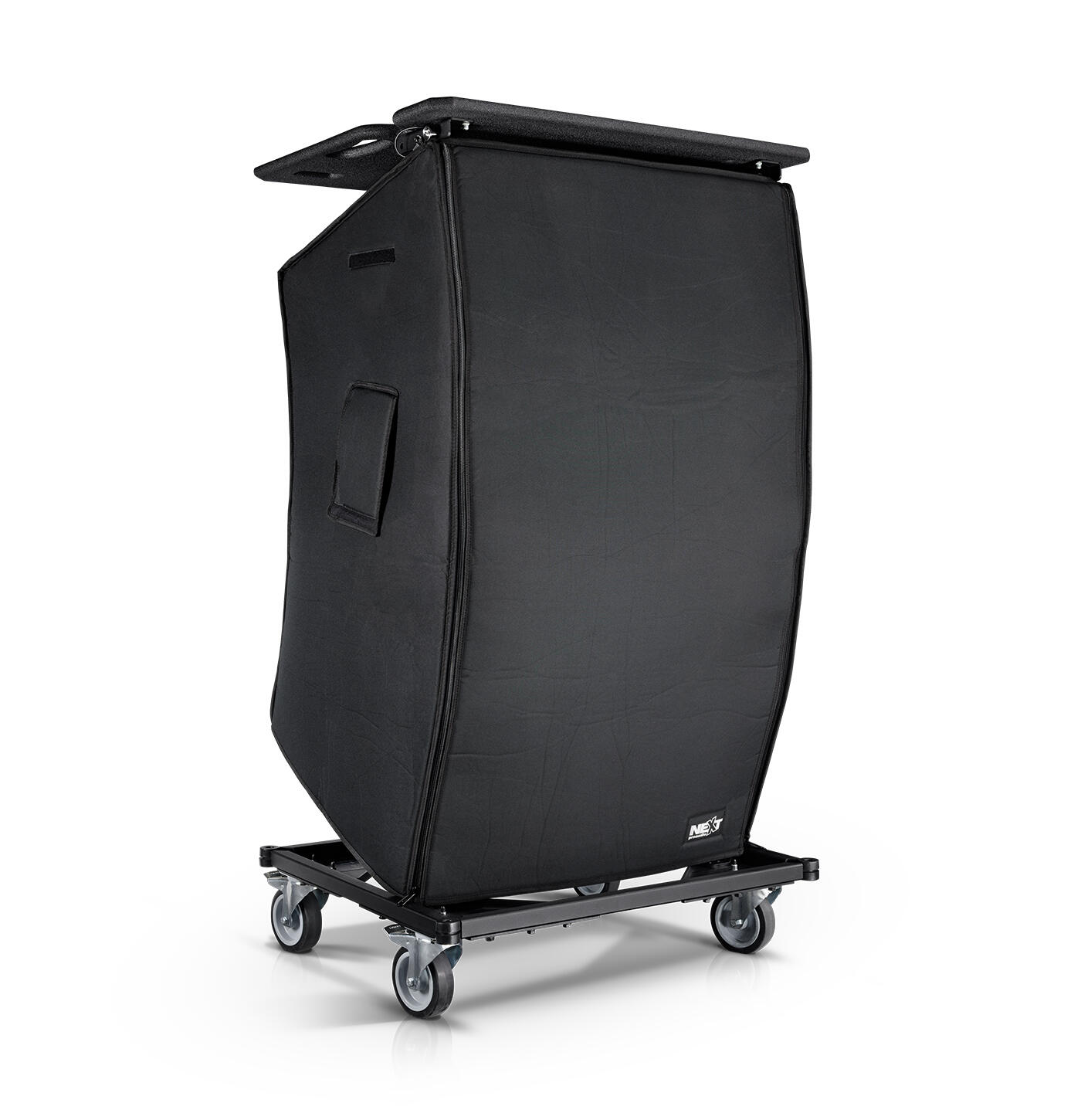

Easily transport your LA210x

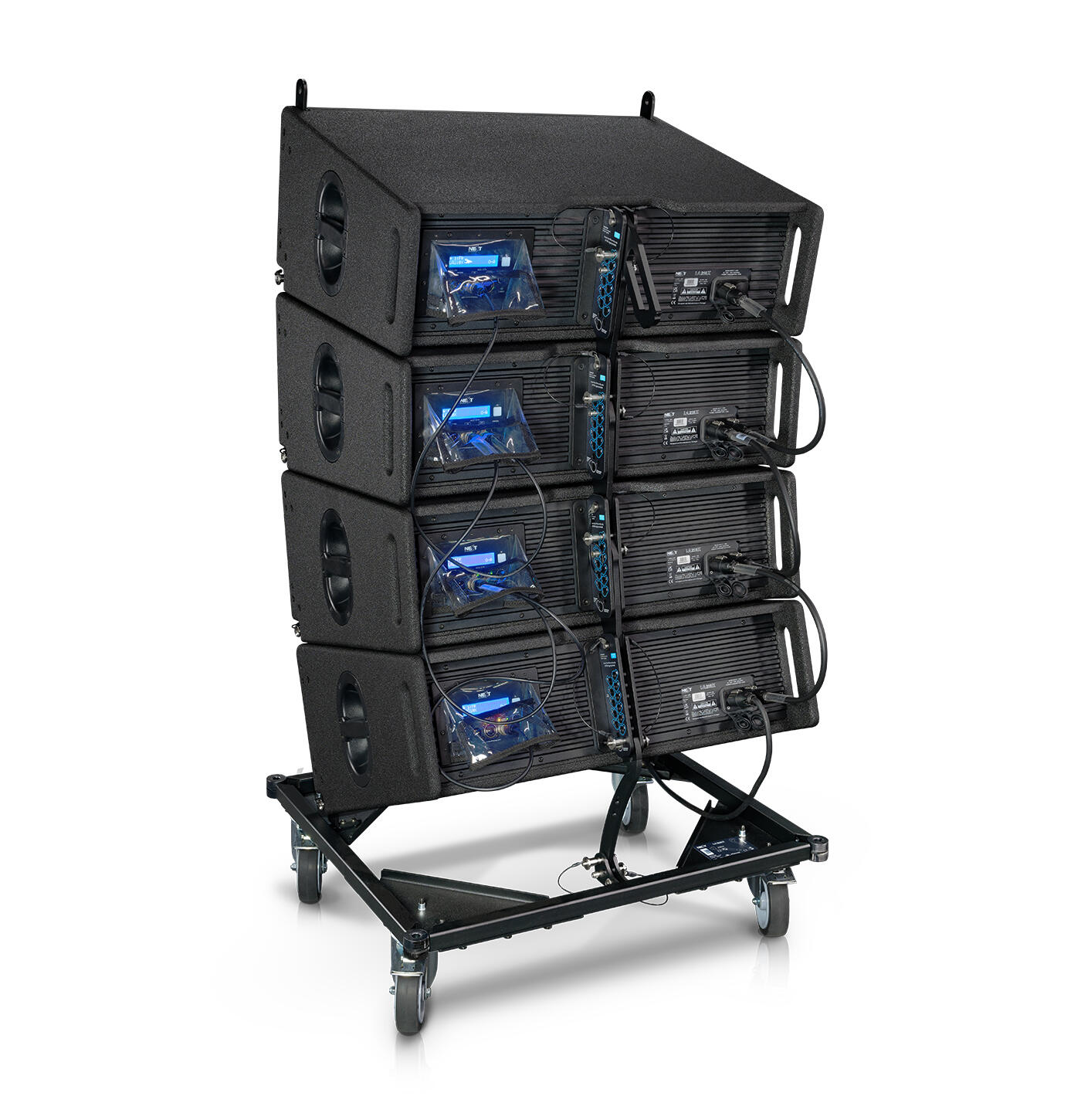

The Heart

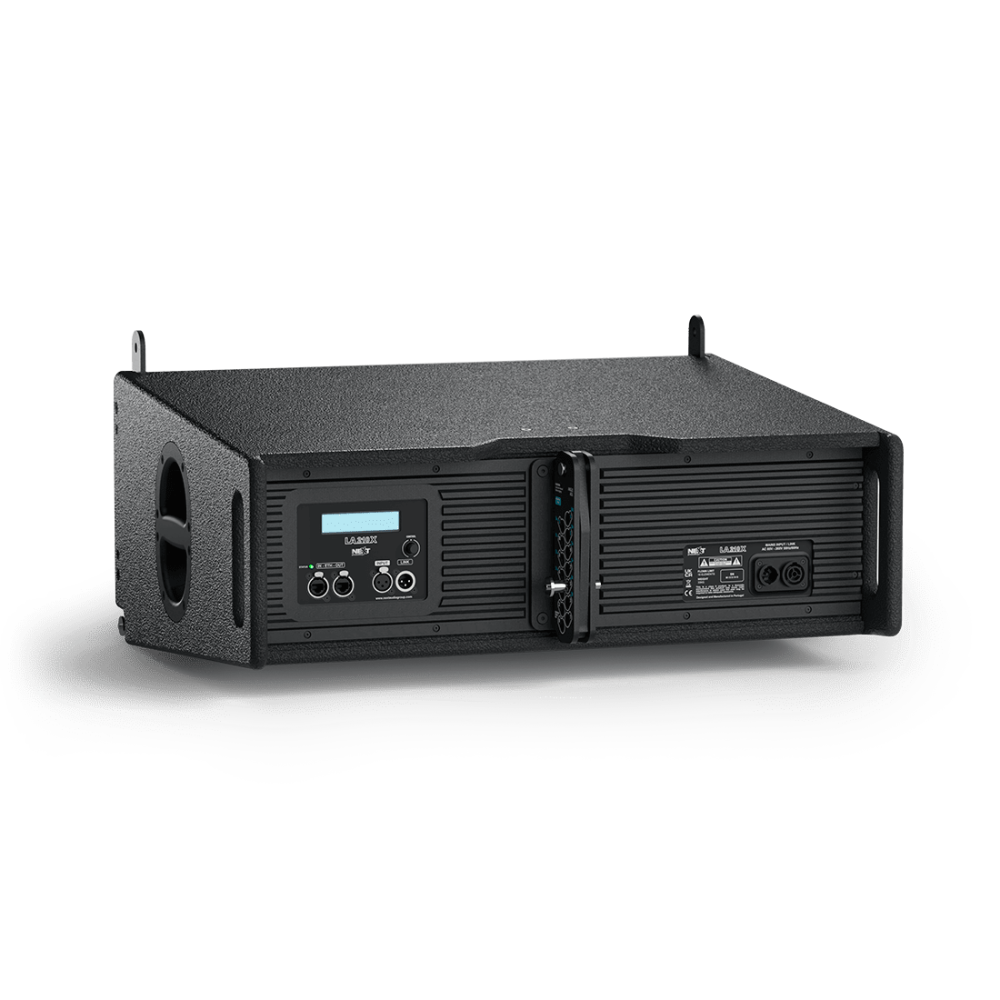

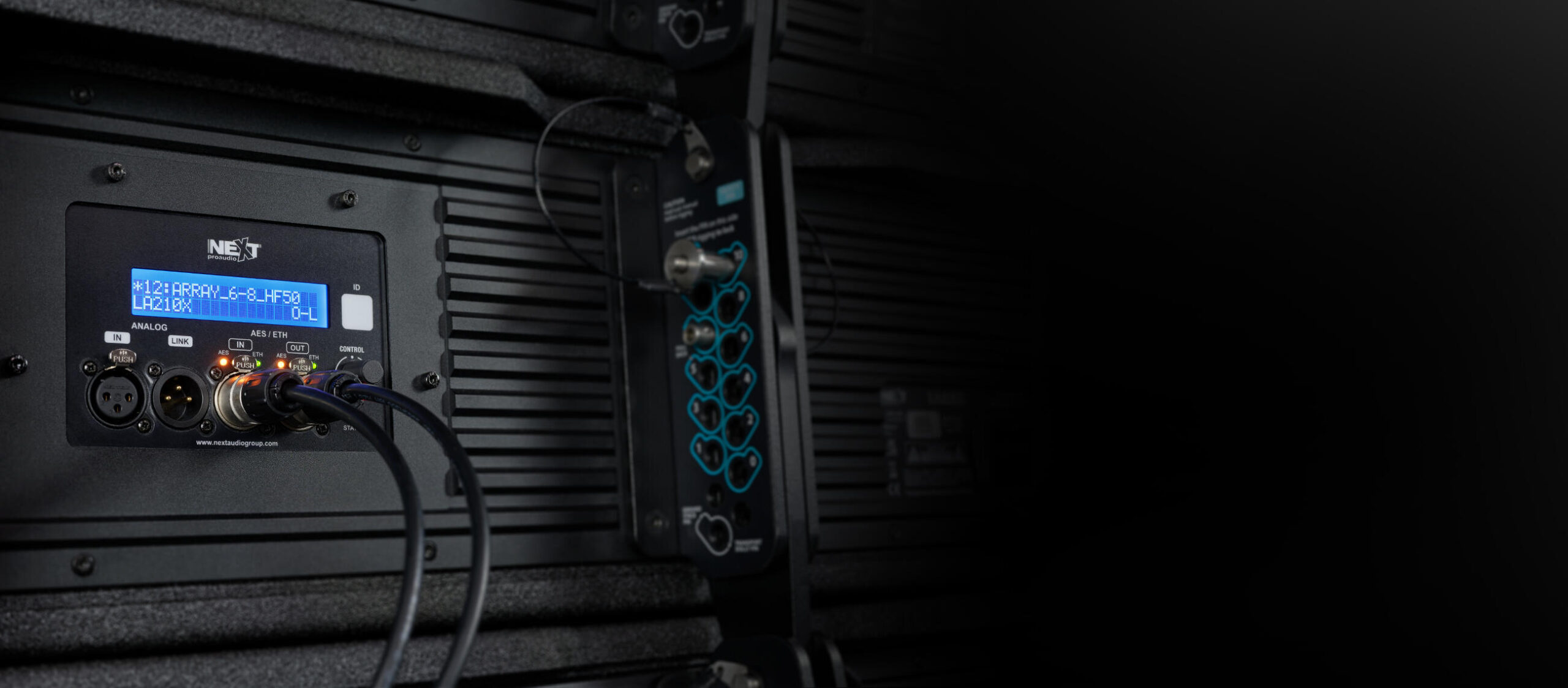

The system is driven by an internal fan cooled 2000W 3-way ultra-efficient Class-D amplifier module releasing 1550W for LF section, 275W for MF section and 175W for the HF section. Integrated universal mains power supply with PFC provides consistency and optimum performance anywhere in the world.

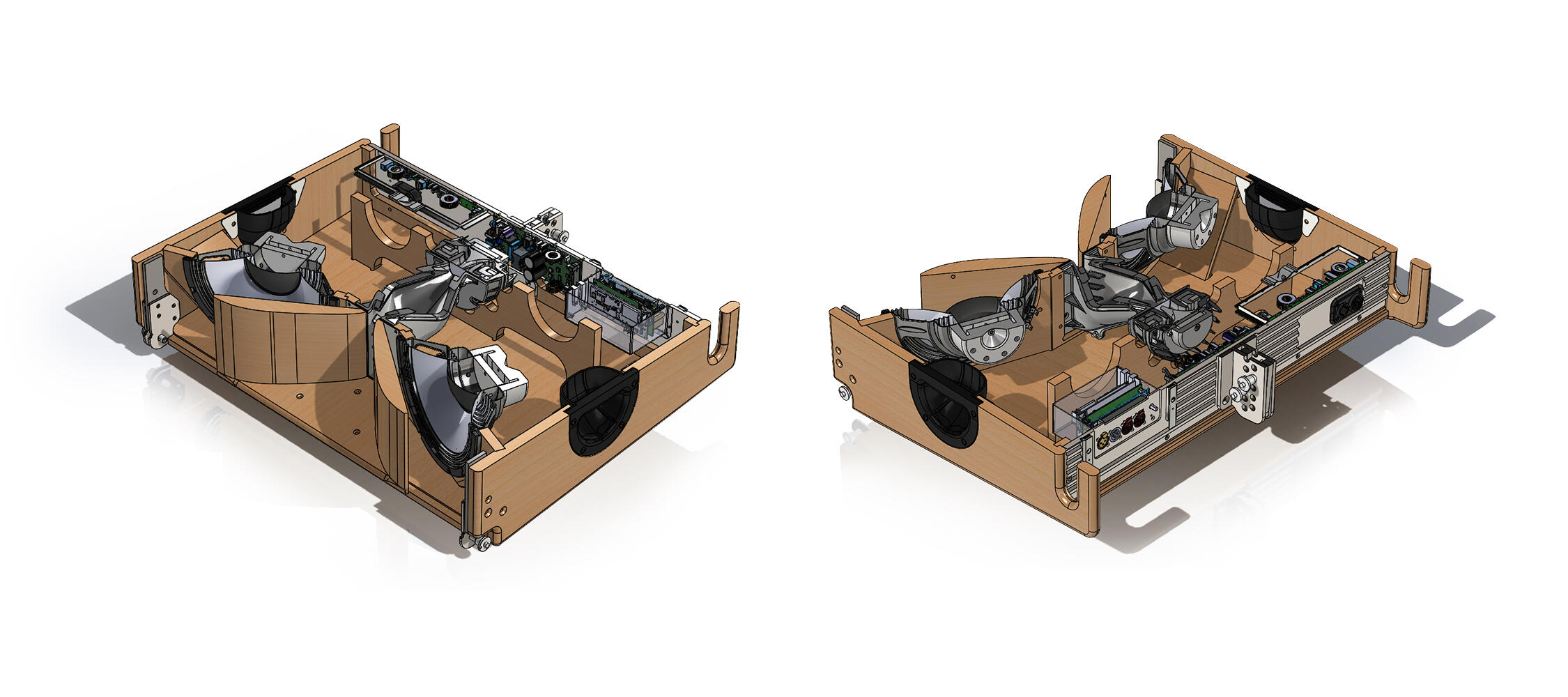

Complex Constrution

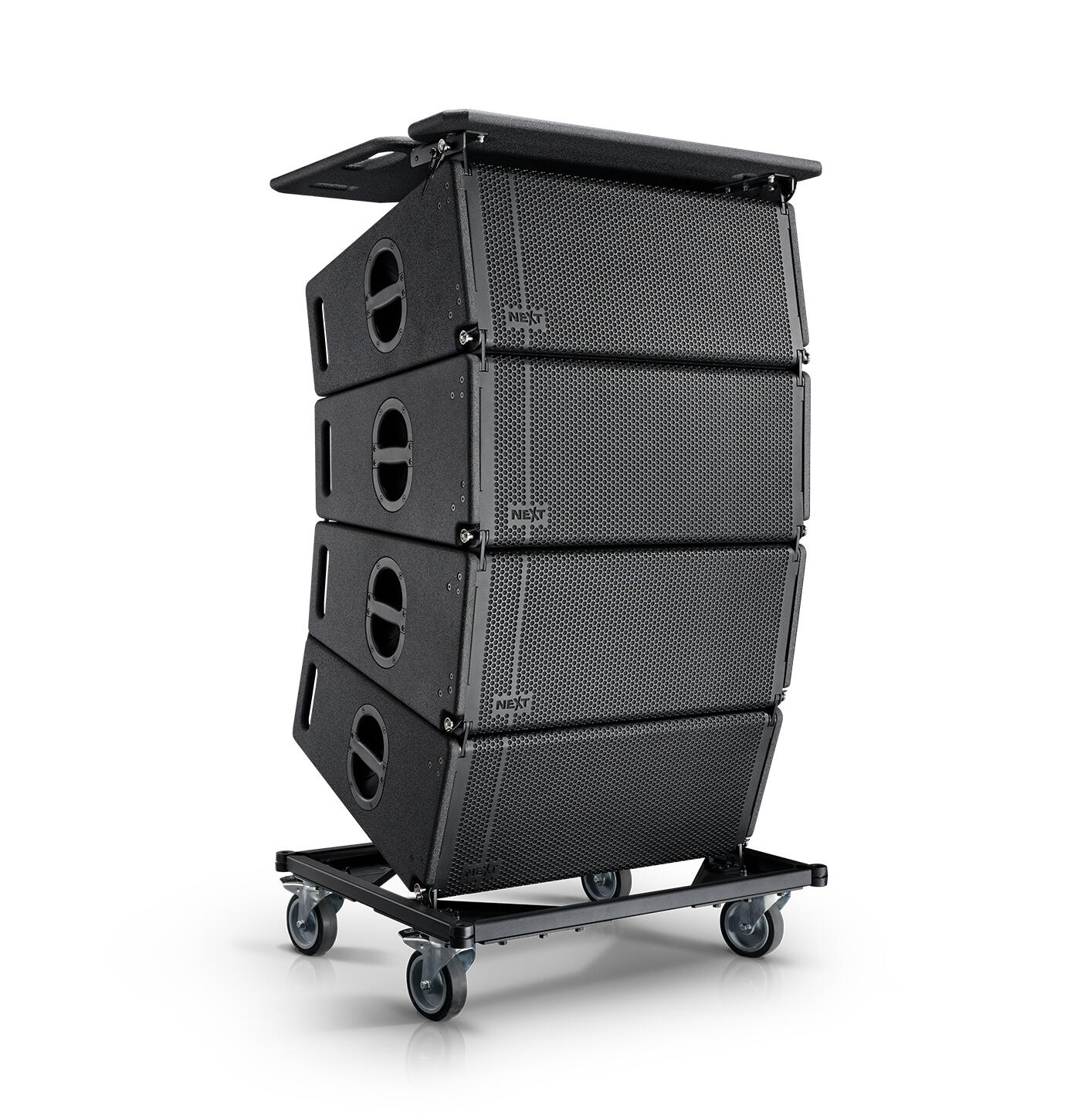

The 3-point rigging system allows for quick and easy system setup. The LA210X elements are easily connected via two front links. A rear center link allows the user to define relative splay angles from 0° to 10°. The system will automatically lock to the predefined angles when lifting the array. The LA210x features dual 10” (3” voice coil) neodymium woofers and a groundbreaking coaxial ring radiator loaded by an exclusively developed OSWG waveguide.



Technical specifications
