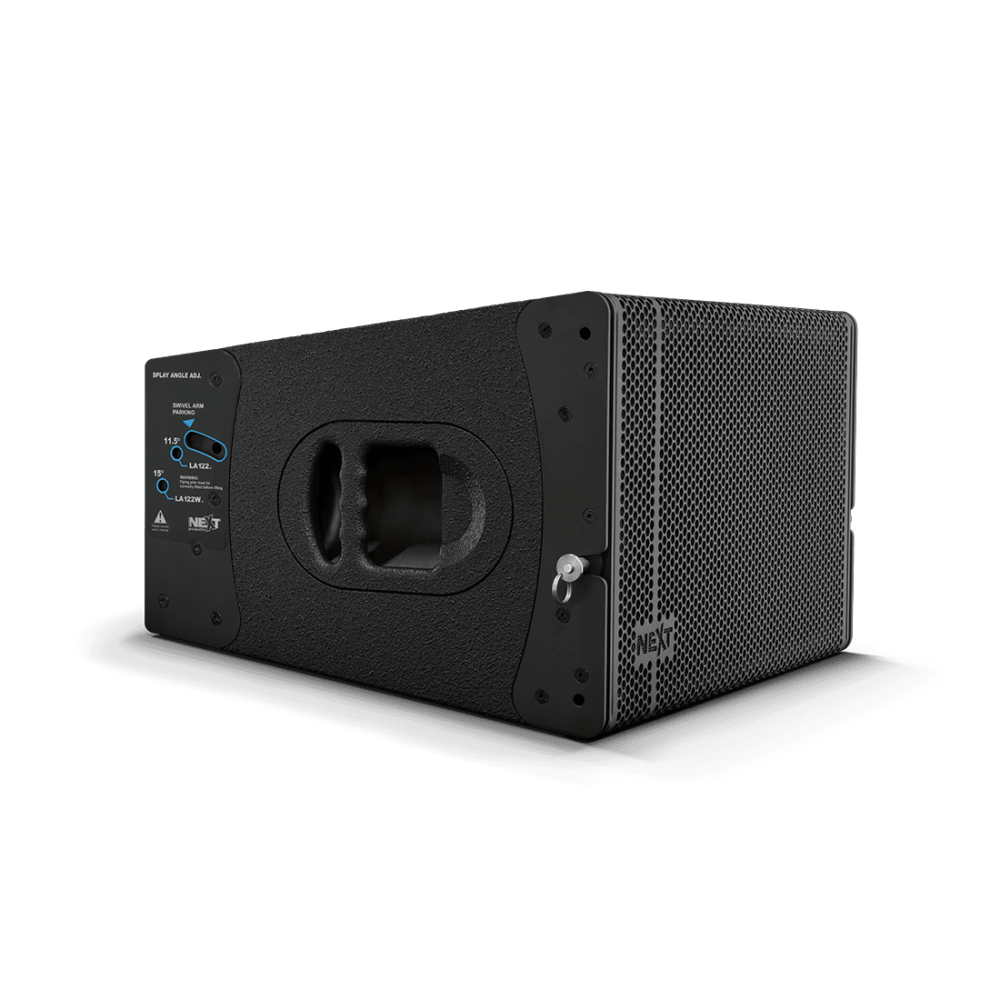

The LA122WA is a 2-way 12” Wide Line Array system incorporating advanced neodymium speakers, custom made by B&C and a high performance DPA amplifier module, capable of generating 2220Wprg of high-definition power for a very high acoustic pressure for medium to large scale applications. This system is designed for use in permanent installations as well as touring system comprises two models, two line arrays elements – LA122A and LA122WA (wide version), with different coverage angles (8ºx90º and 15ºx120º respectively). For low frequency extension the LAs118A or Las418A subwoofers can be used. LA122WA is a perfect solution to use as front-fill on the stage as well as bottom element on LA122A Line Array System configurations to cover the audience near the stage.

FROM SMALL TO MEDIUM VENUES

LA122A/ LA122WA can be used indoor or outdoor, from small to medium venues.

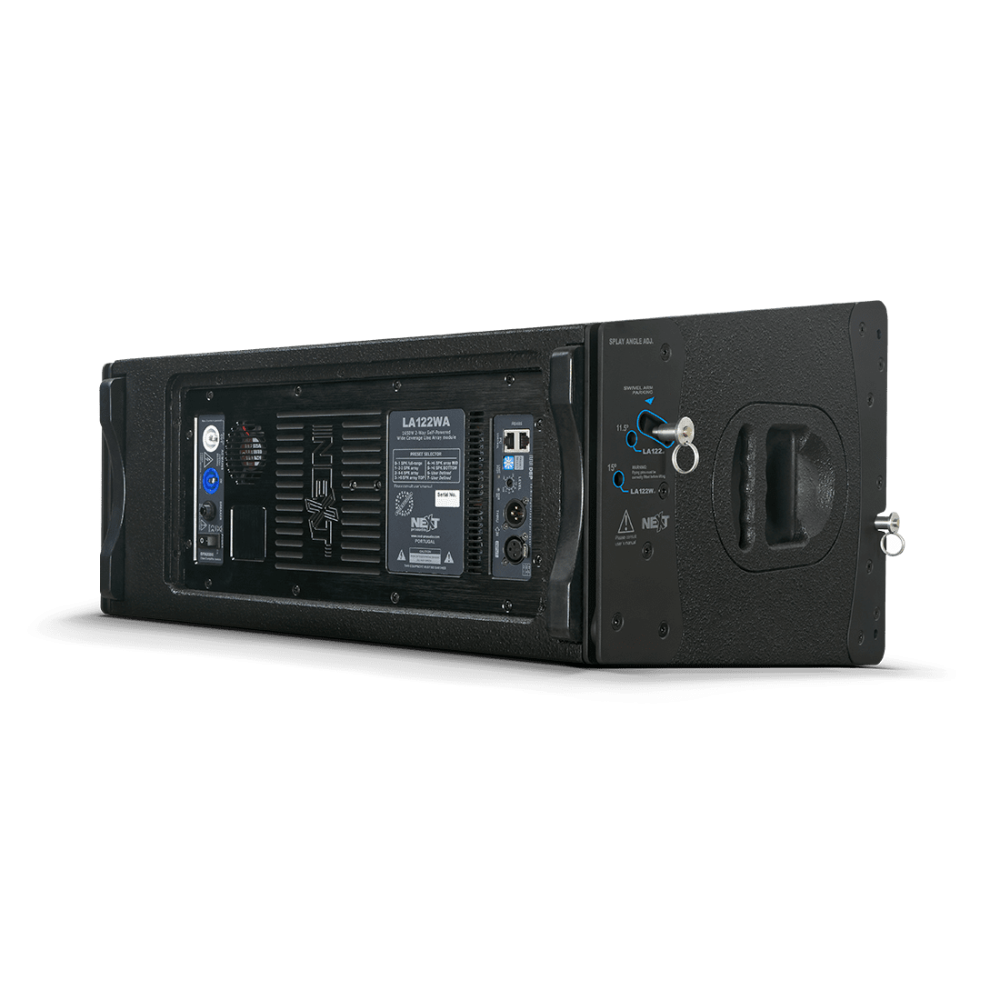

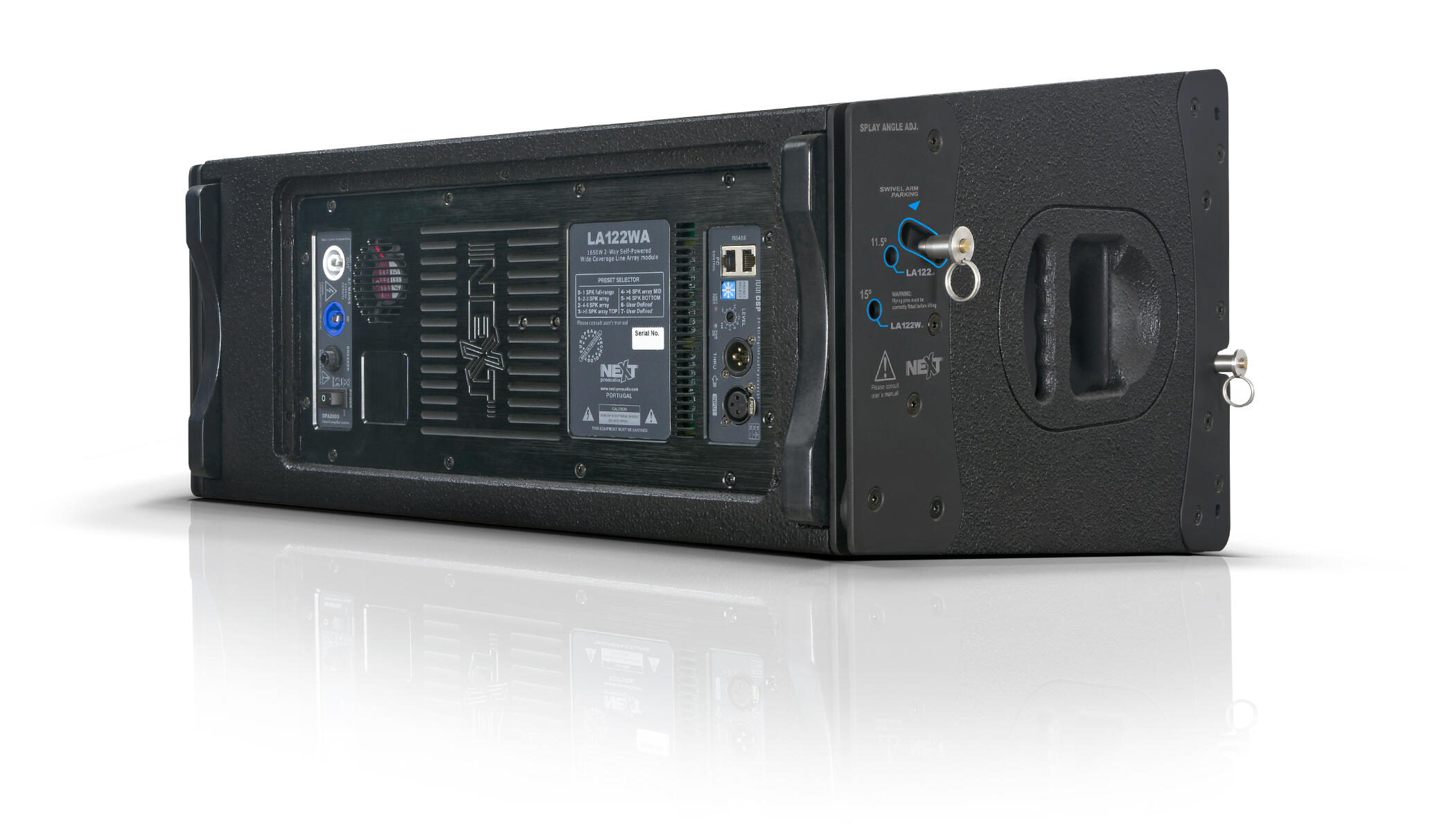

The high efficiency 2220Wprg DPAmplifier module, integrated with an advanced digital processing (DSP). With the Soundware software it is possible to edit each one of the six pre-loaded presets and store it in one of the two free memories. Editable parameters are: input equalization, input delay, input high-pass/low-pass filters and a Bass Enhancer function. A total of 255 units can be controlled simultaneously.

EASE & EASE FOCUS

With the available LA122WA EASE Files you can perfectly simulate the acoustical performance of the complete sound system to find the optimal setup for any given venue..

COMPLEX CONSTRUTION

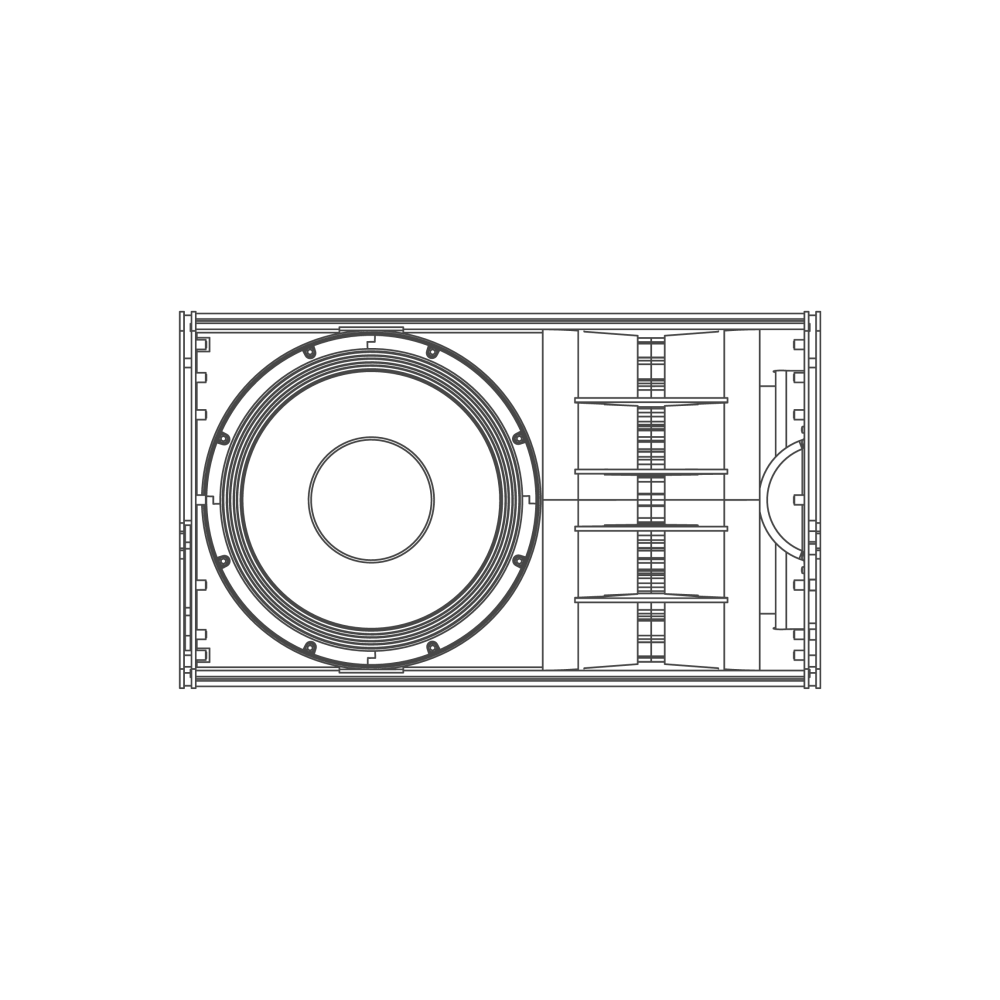

The LA122WA incorporates a special 12″ low frequency transducer employing a 75mm voice coil and neodymium magnet motor assembly. High frequency reproduction relies on the exceptional characteristics of two 1.4″ neodymium compression drivers designed for use in applications where high SPL and low distortion are required. A titanium diaphragm featuring a 65mm copper-clad, aluminium flat-wire voice coil, yields high sensitivity, low distortion and extended frequency response. The two HF drivers are loaded by a wave converter with path length equalization, the ICWG, that transforms the spherical waves into cylindrical isophasic waves coupling seamlessly with the other high frequency transducers of the array.
