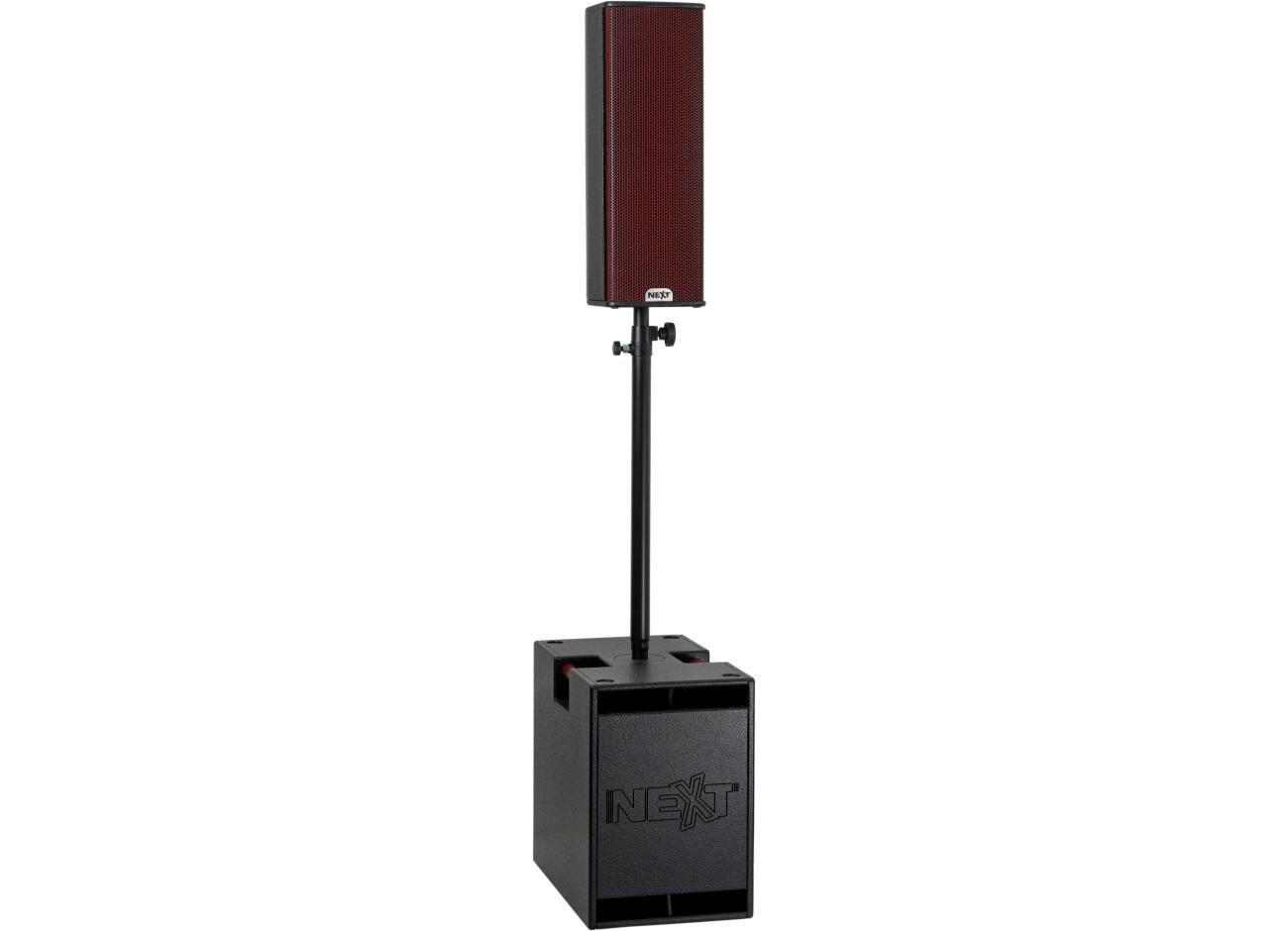

The HFA 26.12 System is an Active 2-way system, integrating the HFA112s to power the passive HFA206p.
The System was designed to deliver high output and dynamics, extreme linearity and fidelity for unrivalled performance at a very competitive price.
Entirely manufactured in Portugal, the HFA speaker series uses superb quality custom made components, loading by birch plywood enclosures, coated by a scratch resistant textured paint to assure an outstanding performance and durability.
The integration with high efficiency DPAmplifier modules, with 1650 Wrms, and the advanced digital processing, set a new standard for distortion, noise and thermal efficiency, allowing the user to configure the system by selecting the right Preset and let the system do the rest. Of course, as in the other series, the Presets can be edited and stored in 2 USER memories.
A surprisingly simple handling concept lets you plug in and play straightaway.
| Component | Quantity |
|---|---|
| HFA206p full-range speakers | 2 units |
| HFA112s subwoofers | 2 units |
| Adjustable-height speaker poles | 2 units |
| NL4 speaker cables, 2.2 m | 2 cables |
The HFA 26.12 is an active stereo PA system in which each HFA112s subwoofer features a built-in amplifier to power itself and one HFA206p full-range speaker.
Passive 2-way full-range speaker
Low-frequency drivers: 2 × 6.5-inch (170 mm)
High-frequency driver: 1 × 1-inch (25 mm), with a 1.75-inch voice coil
Frequency response (-6 dB): 80 Hz – 18 kHz
Coverage angle (-6 dB): 90° × 40°, rotatable
Program power: 500 W
Impedance: 4 Ω
Sensitivity: 95 dB (1 W/1 m)
Calculated maximum SPL: 121 dB continuous / 127 dB peak
Dimensions (W × H × D): 219 × 625 × 259 mm
Weight: 14.4 kg per speaker
Active band-pass subwoofer with a 2-channel amplifier
Low-frequency driver: 1 × 12-inch (300 mm)
Voice coil: 3.5 inches (88 mm)
Magnet: Neodymium
Frequency response (-6 dB): 40 Hz – crossover frequency
Low-frequency extension (-10 dB): 34 Hz
Calculated maximum SPL: 130 dB continuous / 136 dB peak
Total amplifier power: 1,650 W RMS
Subwoofer amplifier power: 1,100 W RMS
Full-range speaker amplifier power: 550 W RMS at 4 Ω
DSP: 24-bit / 48 kHz
EQ and DSP functions: 6-band PEQ, Delay, HPF, LPF, Bass Enhancer, Level, Polarity and Mute
Dimensions (W × H × D): 349 × 512 × 550 mm
Weight: 25.2 kg per subwoofer
| Specification | Value |
|---|---|
| Model | NEXT HFA 26.12 |
| System configuration | 2 × HFA206p + 2 × HFA112s |
| System type | Active stereo PA system |
| Frequency extension | 34 Hz (-10 dB) |
| Subwoofer maximum SPL | 136 dB peak per unit, calculated in half-space |
| Subwoofer amplifier power | 1,100 W RMS per unit |
| Full-range speaker amplifier power | 550 W RMS per unit at 4 Ω |
| Digital signal processing | 24-bit / 48 kHz DSP |
| Country of origin | Portugal |
Note: The 1,650 W RMS rating represents the total built-in amplifier power per HFA112s subwoofer, not the power rating of the subwoofer driver alone. The SPL ratings of individual speakers should not be added directly to determine the overall system SPL, as the result depends on speaker placement and measurement conditions.
