The NELO706 surface-mount loudspeakers allow installation to any wall or ceiling where functional and cost-efficient reproduction for music and speech is required. Specifically, it features a 6.5” broadband loudspeaker with a continuous power handling of 10 Watt (RMS). Additionally, it is fitted with a line transformer for use in 70V/100V public address systems, including power tappings for 6W and 3W. Furthermore, the housing is minimalistic and elegantly designed, with a very narrow border and a finely perforated steel grill on the front. Moreover, connections are made through SnapConnect™ terminals, thus offering a faster, more reliable, and safer choice for fixed installations. Finally, the NELO706 is available in various models, including versions with (NELO706V) and without (NELO706) an individual volume controller on its side. Additionally, it comes in two different colours (Black /B & White /W) to seamlessly blend with any residential, commercial, or industrial environment.
| NELO706/B | Black version without volume controller |
| NELO706I/W New | White version (RAL9016) without volume controller |
| NELO706V/B | Black version with volume controller |
| NELO706VI/WComing soon | White version (RAL9016) with volume controller |
| Peak power handling | 40 W | |
| Program power handling | 20 W | |
| Continuous power (AES) | 10 W | |
| Sensitivity (1W/1m) | 96 dB | |
| Sound Pressure (Max. W/1m) | @ 100 V | 106 dB |
| Speaker type | Broadband | |
| Connection | SnapConnect™ | |
| Drivers | 6.5” Full Range | |
| Volume control | Integrated rotary volume controller (only NELO706V) | |
| Frequency | Response (± 3 dB) | 100 Hz – 15 kHz |
| Range (-10 dB) | 70 Hz – 18 kHz | |
| Line Transformer Tappings | 1 | 833 Ω – 100 V / Not used – 70 V / 6 W |
| 2 | 1667 Ω – 100 V / 6 W – 70 V / 3 W | |
| 3 | 3333 Ω – 100 V / 3 W – 70 V / 1.5 W | |
| Dispersion | Conical | 140° |
| Colours | Black & White |
| Front finish | Steel grill |
| Construction | ABS |
| Mounting | Wall/Ceiling mounting (two screw holes) |

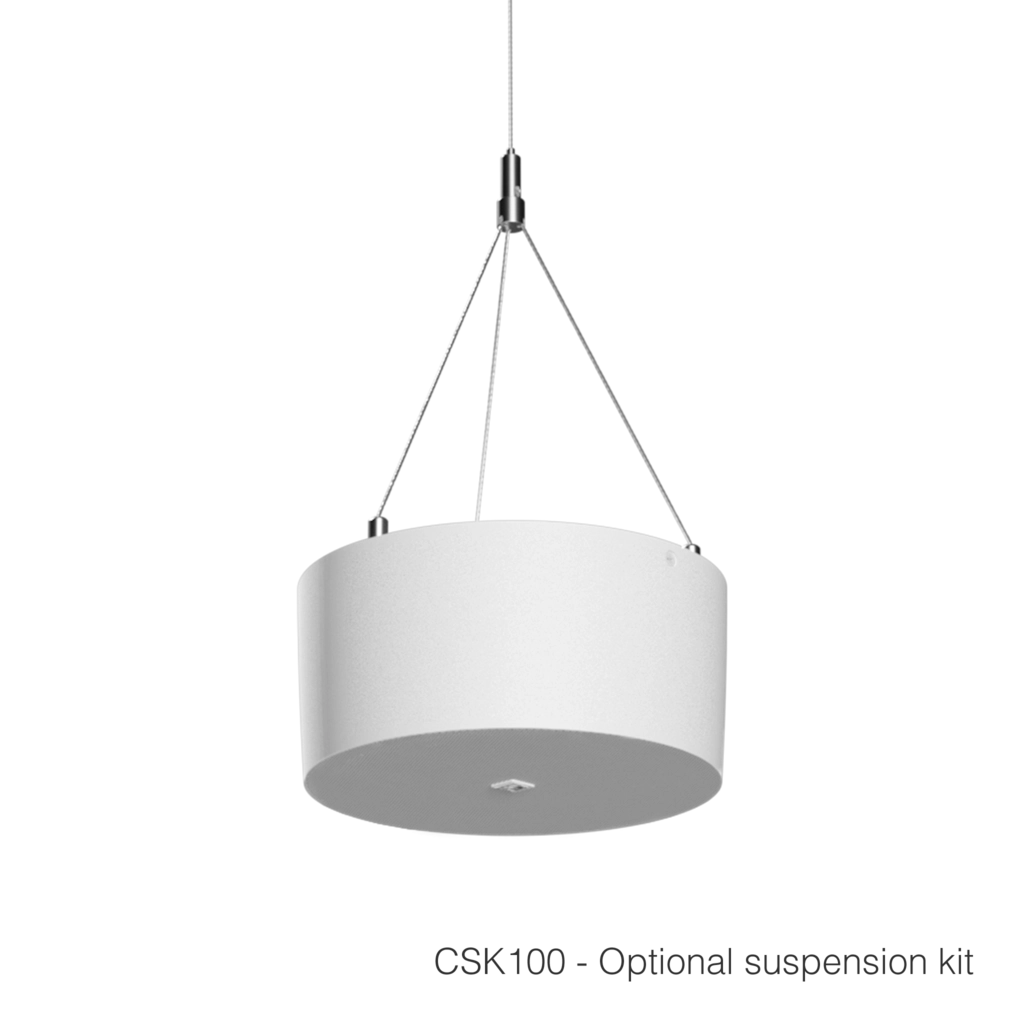

| CSK100 ceiling suspension kit (optional) | |
| Colours | White (RAL9003) (NELO706/W) |
| White (RAL9003) (NELO706V/W) | |
| White (RAL9016 grill + RAL9003 housing) (NELO706I/W) | |
| White (RAL9016 grill + RAL9003 housing) (NELO706VI/W) | |
| Black (RAL9005) (NELO706/B) | |
| Dimensions | 206.5 x 95 mm (Ø x D) |
| Operating temperature | -25 °C ~ 70 °C |
Residential |
Retail |
Hotels |
Corporate |
