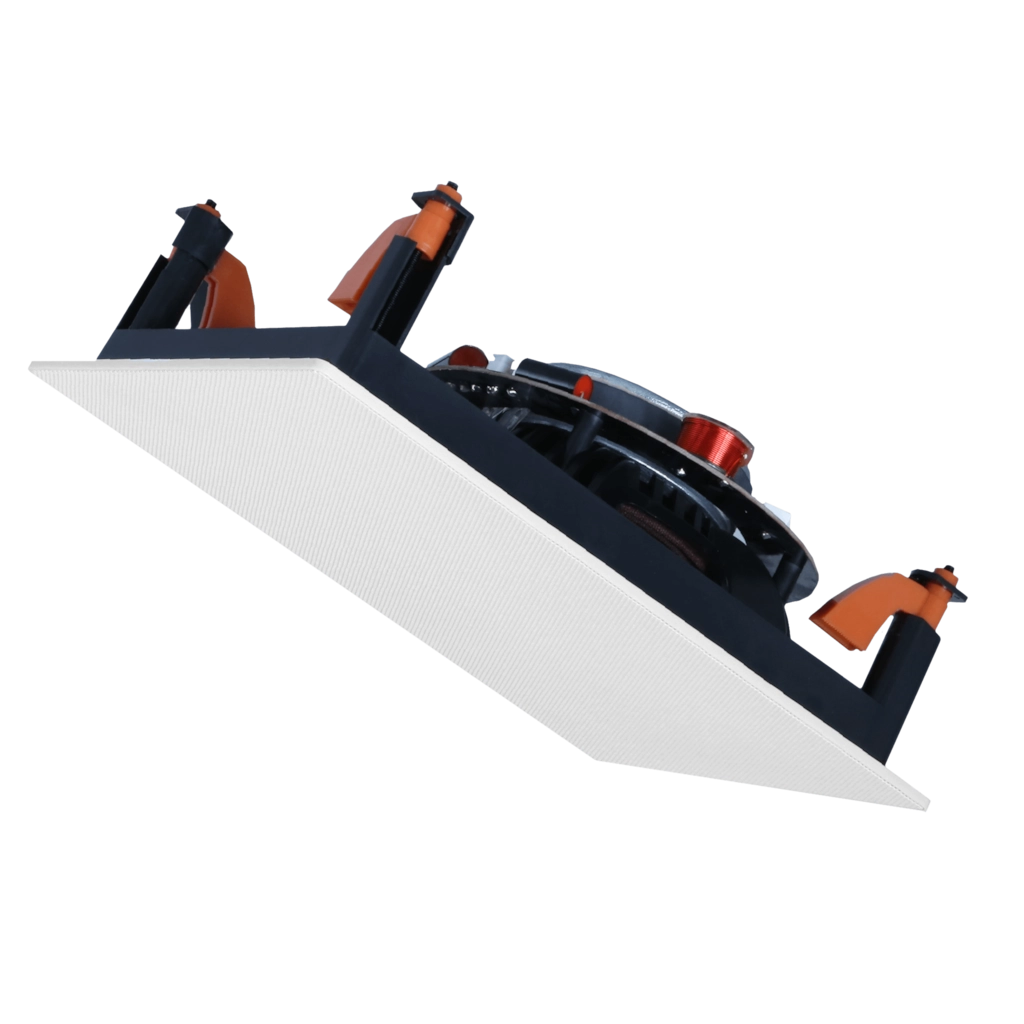

MERO6

High-end 2-way in-wall speaker 6″
  • SlimLine™ grill with 1mm thin border
  • Gold-Con™ spring clamps
  • 1″ + 6″ Aluminum membrane drivers
  • QuickFix installation system
5 years  8 Ohm

The selection of high-grade materials in combination with accurate acoustics craftsmanship makes the MERO speakers superior in their class. The largest MERO6 consists of a 6” aluminum cone woofer and complementary 1” dome tweeter that are smoothly matched and optimized using a high-quality crossover network. An acoustically optimized waveguide matches the dispersion of woofer and tweeter, while a phase-plug reduces diffraction and enhances off-axis high frequency response. All these details share their part to its pure sound. An elegant look with minimal visual impact is created by the slim grill with very thin border, while great ease and installers convenience is guaranteed using the quick-fix mechanism with Gold-CON connectivities. The grill is held in place using neodymium magnets, providing a quick and stable assembly. Installation can be done in both vertically and horizontally, while the rotatable tweeter allows optimal orientation positioning.

Technical specifications

Available models
MERO6I/W White version – 8Ω (RAL9016 + Logo)
System specifications
Speaker type2-way
Peak power handling240 W
Program power handling120 W
Continuous power (AES)60 W
Impedance8 Ω
Sensitivity (1W/1m)88 dB
Sound Pressure (Max. W/1m)106 dB
FrequencyResponse (± 3 dB)55 Hz – 20 kHz
Range (-10 dB)44 Hz – 20 kHz
CrossoverFrequency3 kHz
TypePassive built-in
DispersionHorizontal160°
Vertical140°
ConnectorsGold-Con™ spring clamps
DriversHF1” Aluminium membrane
Rotation angle7.5°
LF6” Aluminium membrane
Product Features
Dimensions196.5 x 276.5 x 82 mm (W x H x D)
Weight1.660 kg
ConstructionABS
Front finishThin edged white grill (RAL9003)
Cut-out measurement174 x 254 mm
Built-in depth78.5 mm
Mounting & handling4 Screw quick-fixing mechanism
Operating temperature-20 °C ~ 60 °C
AccessoriesIncludedCut-out template
OptionalWTR24 – 24W 100V line transformer
GLM06/B – Black grill (RAL9005)
GLM06/P – Paintable grill
ColoursBlack frame & white grill
White (RAL9003) (MERO6)
White (RAL9016) (MERO6I/W)
Recommended applications
Hotels
Corporate
Residential
Bars & Restaurants
Retail
