A full-range stage monitor with working angles for nearfield and farfield use, equipped with a modern coaxial loudspeaker featuring a neodymium magnet and 3″ voice coils for both transducers, along with an external HF horn providing controlled 60×40 directivity.
TM15 is a compact, low-profile monitor operating in passive mode, using a single amplifier channel while maintaining exceptional sound quality. It is also prepared for active (Bi-Amp)* operation, driven by two amplifier channels with a DSP processor.
Laminar bass-reflex port – the tuning and design of the bass-reflex port have been carefully optimized to harness the energy radiated from the rear of the loudspeaker cone. This design not only extends the low-frequency bandwidth and increases bass efficiency, but also ensures the port outlet is shaped to maintain smooth, laminar airflow. Such a design significantly reduces turbulence and distortion, ensuring TM15 monitors deliver crystal-clear sound free from common shortcomings of standard bass-reflex designs (such as low-frequency distortion and “chuffing”).
* The passive/bi-amp switching option is installed on request.
APPLICATIONS:
Stage monitor with two working angles (nearfield and farfield) and FOH use
Live music
Music playback
Speech
FEATURES:

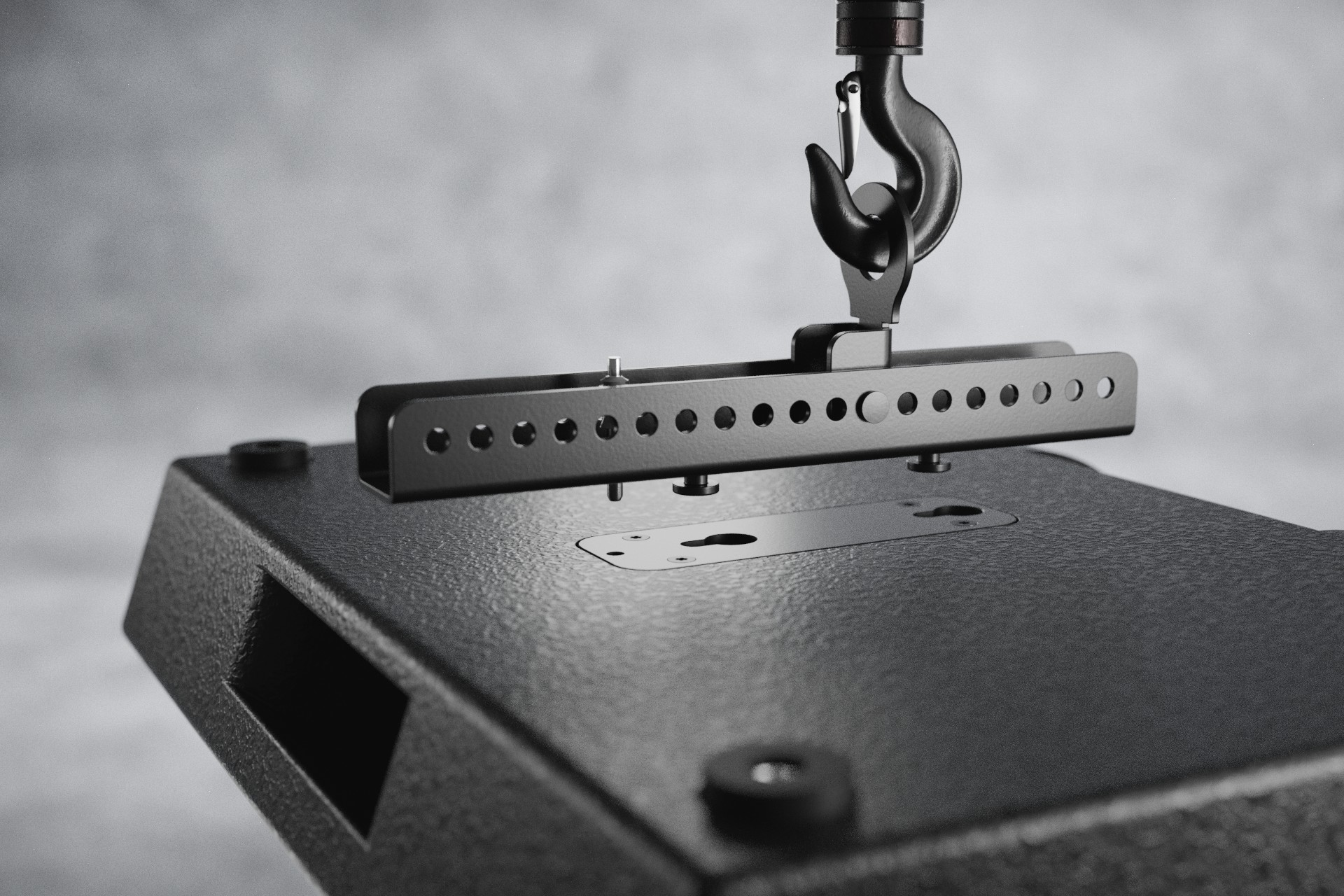

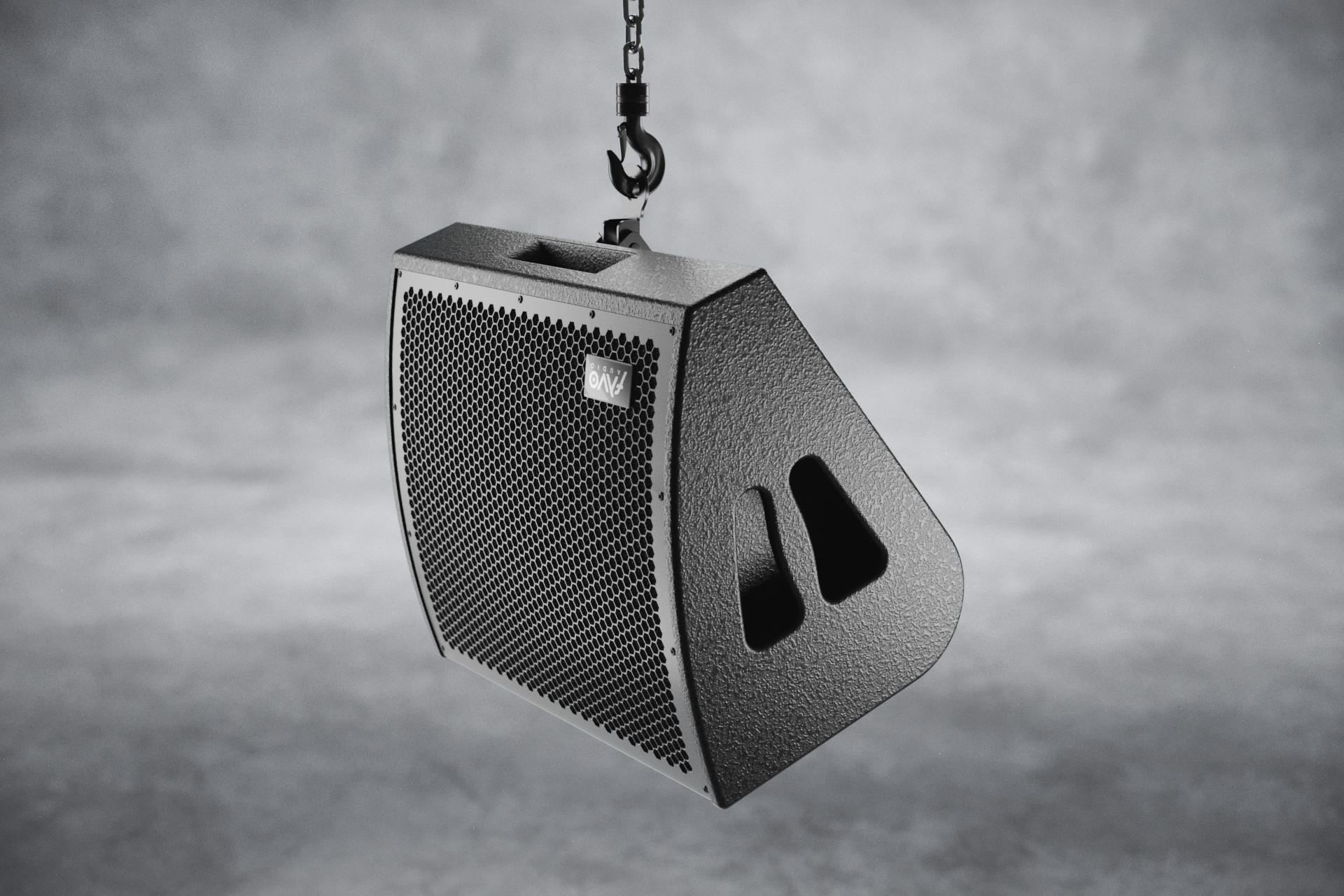

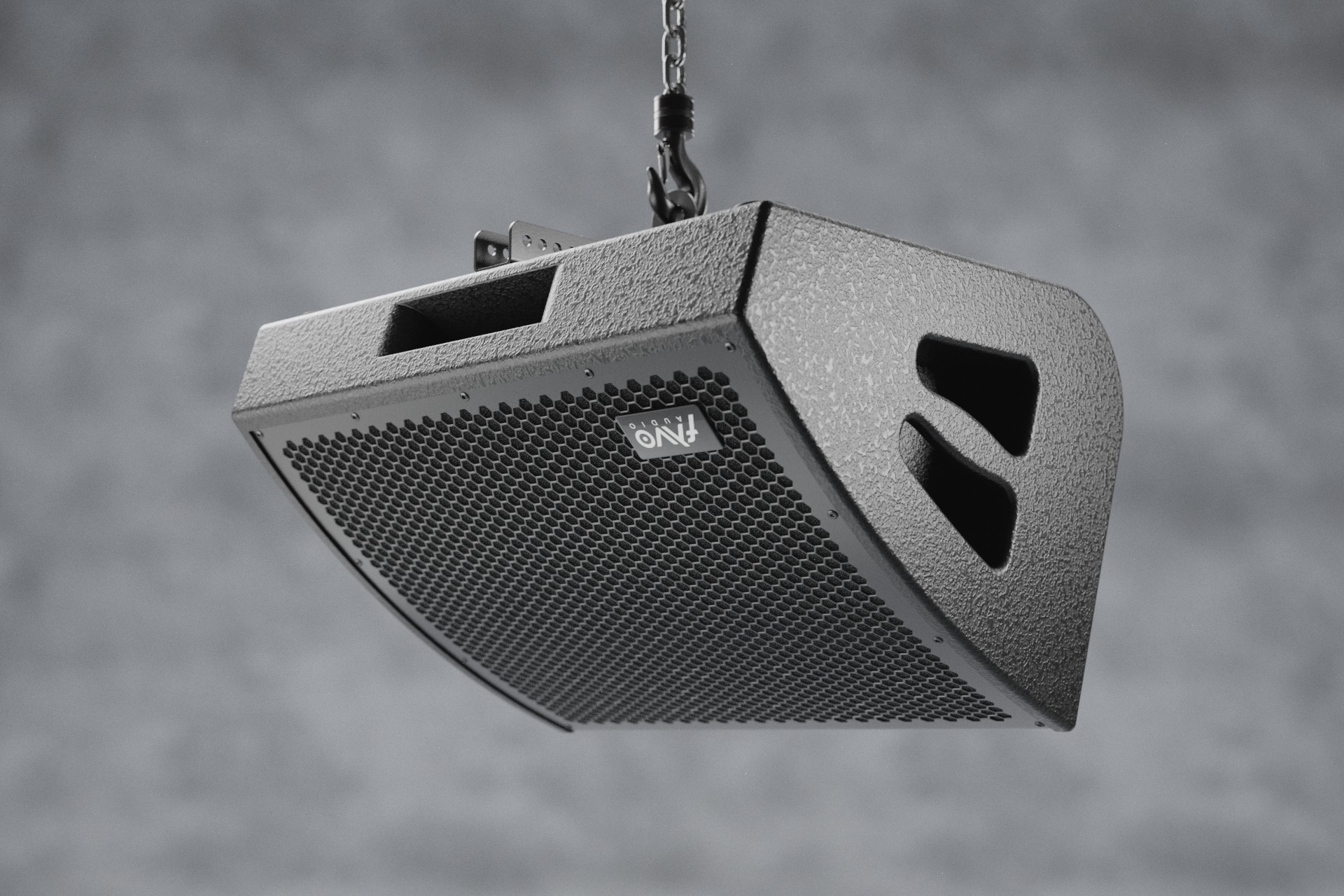

Can be flown using a U-bracket and used as FOH or side-fill
Pole mount socket with adjustable angle
Single amplifier channel
Waterproof PU Polyurea coating
Designed for demanding festival stage conditions
| Nominal Power | 400W AES | |
| Recommended Amplifier Power | 600-800W RMS | |
| Sensitivity SPL (1W/1m) | 99dB | |
| Max SPL (peak CF6) | 131dB (Crest Factor 6dB) | |
| Max SPL (peak CF12) | 137dB (Crest Factor 12dB) | |
| Frequency Response (-3dB) | 70Hz – 18kHz | |
| Frequency Response (-10dB) | 50Hz – 20kHz | |
| Phase | 200Hz – 16kHz ±65° (passive crossover) | |
| HF Horn Dispersion | 40° horizontal × 60° vertical (can be changed to 90°) | |
| Working Angles (Near/Far Field) | 35° / 75° relative to the floor | |
| Drivers | B&C Speakers 15″ lightweight coaxial neodymium driver, shared magnet, 3″ voice coil, 1.4″ compression driver exit with 3″ voice coil | |
| Laminar Bass Reflex Port | Provides turbulence-free airflow and excellent low-frequency coupling with the ground | |
| Impedance | 8Ω | |
| Dimensions (H × W × D) | 345mm × 580mm × 510mm | |
| Weight | 19.5kg | |
OPTIONAL:
A heavier but more budget-friendly ferrite magnet version available: FAVO TM15F
Protective hard Cordura bag with the brand logo
Bi-amp version available on request
