FAVO D181 DUKE

COMPACT 1×8″ LINE ARRAY SYSTEM

The Duke D181 is a highly modular and fully scalable line array system. It consists of two full-range modules with 80° (D181N – narrow) or 110° (D181W – wide) horizontal coverage. Thanks to its acoustic and mechanical modularity, it can be utilized in a wide variety of applications, from small to large venues, where pattern control and long-throw reinforcement with a small-format box size are required.

An optimal solution in terms of size (reducing transportation costs) and capabilities.

All Favo products are weatherized and covered with a thick Polyurea coating.

Yêu cầu tư vấn
Xem các dự án

SIMPLIFIED DESIGN SPECIFICATION

  • 8″ neodymium LF speaker and two 1″ (1.75″ coil) neodymium HF line sources, 400W recommended amplifier power
  • Wide and narrow horizontal directivity – two models – 80 and 110 degrees nominal dispersion
  • Compact size – 42cm width and 25cm height
  • Modules driven in bi-amp mode
  • Installation mounting options, M8 mounting points
  • Frame allows for hanging and stacking with the ability to tilt the lower module up to 10 degrees
  • Platform accessory allows to stack D181 modules on a speaker pole and fix to a subwoofer with M20 thread

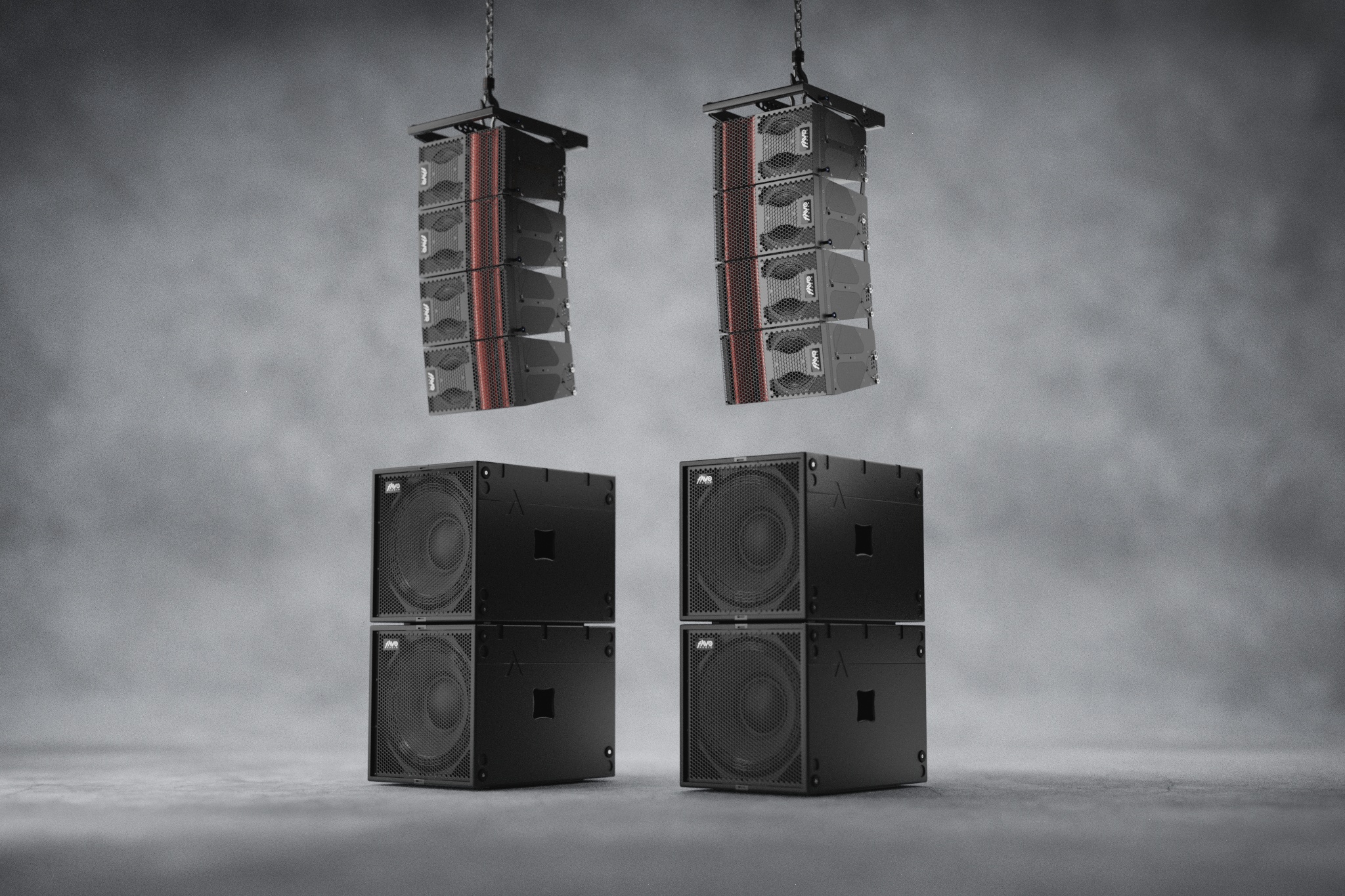

FAVO DUKE D181 line array system has a very wide range of applications – from 2 modules per side for mobile DJs or bands to 12 modules per side for demanding sound reinforcement. Options for hanging and stacking using the same frames and accessories.

d181

Maximum clarity, intelligibility, and exceptional linear characteristics in both magnitude (SPL/frequency) and phase (time domain) are achieved through highly accurate iso-phase HF waveguides and a mid-range speaker divider. The system offers high-fidelity output using top-quality European made components and craftsmanship. The nominal dispersion angles remain constant across the widest possible frequency range. These speakers are designed for medium-power broadband speech and music applications, whether used in full range or paired with FAVO subwoofers when low frequency extension is necessary.

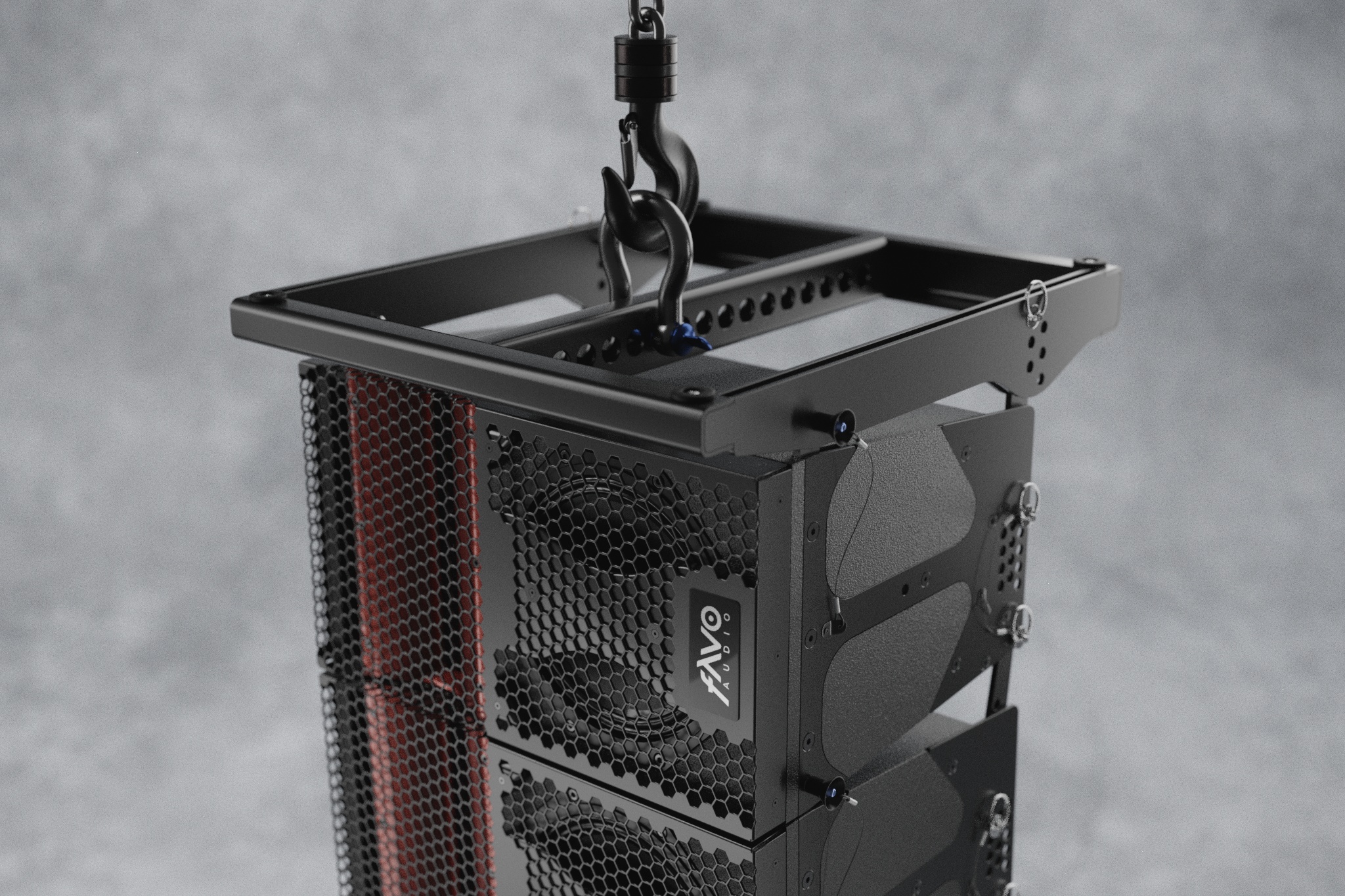

Rugged, ergonomic, user-friendly rigging hardware and accessories enable fast, accurate enclosure angle adjustments in one-degree increments from 0° to 12°. The same frame is used for both flying and subwoofer stacking. Additional platforms allow placing up to four modules on a speaker pole or fix to the subwoofer with an M20 thread.

Technical specifications

LF Section Power AES/Continuous/Peak200/400/800W
HF Section Power AES/Continuous/Peak100/200/400W
SPL Efficiency (1W/1m)97dB (average in usable bandwidth, details on the graph) *
Max SPL (peakCF4 12dB)132dB **
Recommended amplifierMD4820 for up to 6 modules per pair of channels (400W/1 module)
Recommended frequency range70Hz-18kHz with 6 units
Horizontal directivity80 and 110 degrees (Narrow/Wide)
Vertical geometry settings0-12 degrees in one-degree increments between modules
Frequency response (-3dB)70Hz – 18kHz – details on the attached graphs for wide and narrow versions
Phase 300Hz-20kHz+/-45 degrees – details on the graph *
SpeakersB&C – 8″ woofer, 2″ coil, neodymium magnet; high-frequency driver with 1.7″ coil and 1″ exit forming an isophase cylindrical wave source with waveguide
Impedance16Ω LF and 16Ω HF

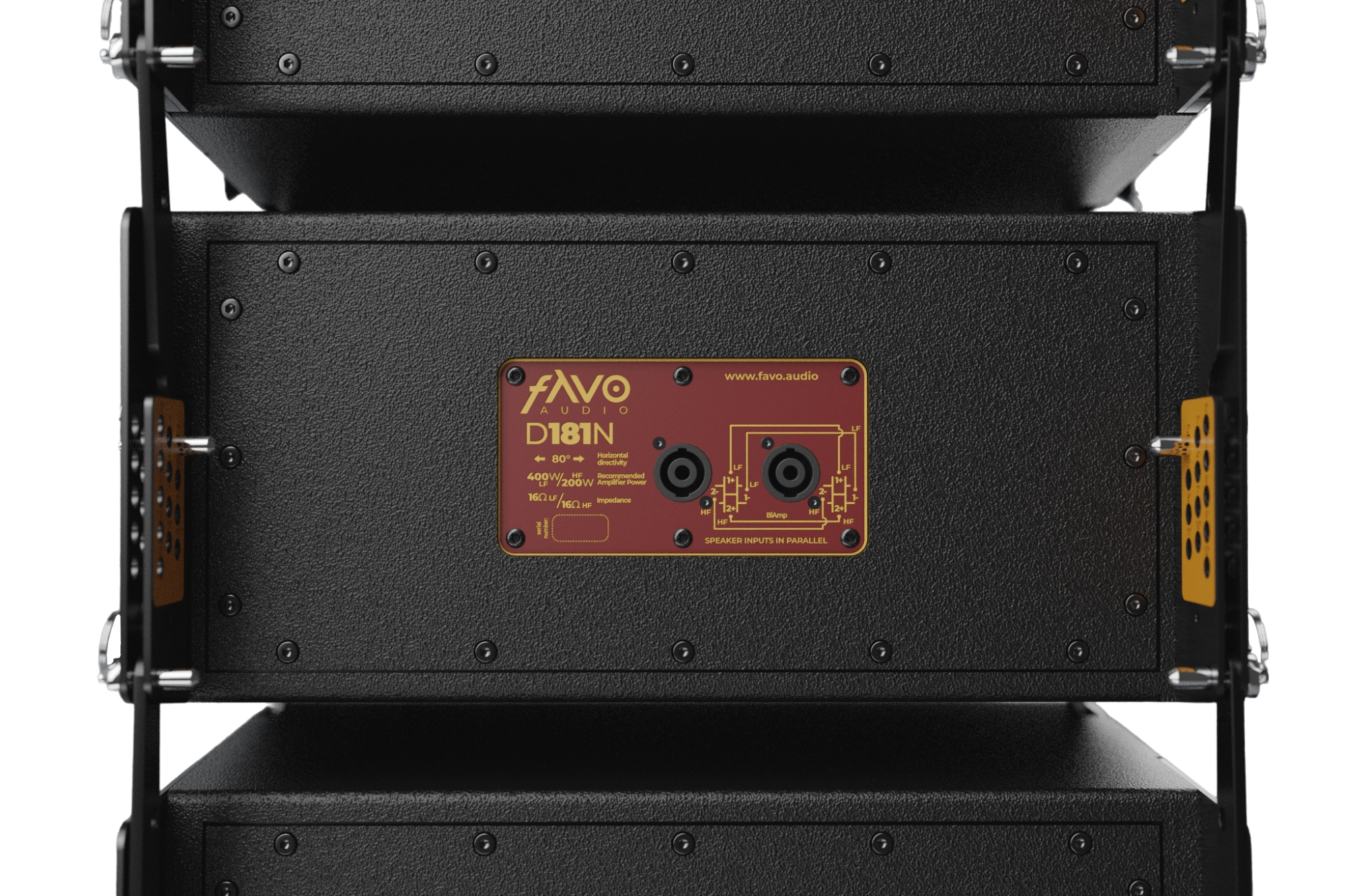

Connectors2x Neutrik NL4
Dimensions (HxWxD)244mm x 420mm x 300mm
Weight15kg

5-year warranty

FAVO provides a 5-year warranty on all speaker sets, covering manufacturing defects. In the event of a failure, we provide the fastest possible technical support and offer post-warranty service.
