FAVO BLP218

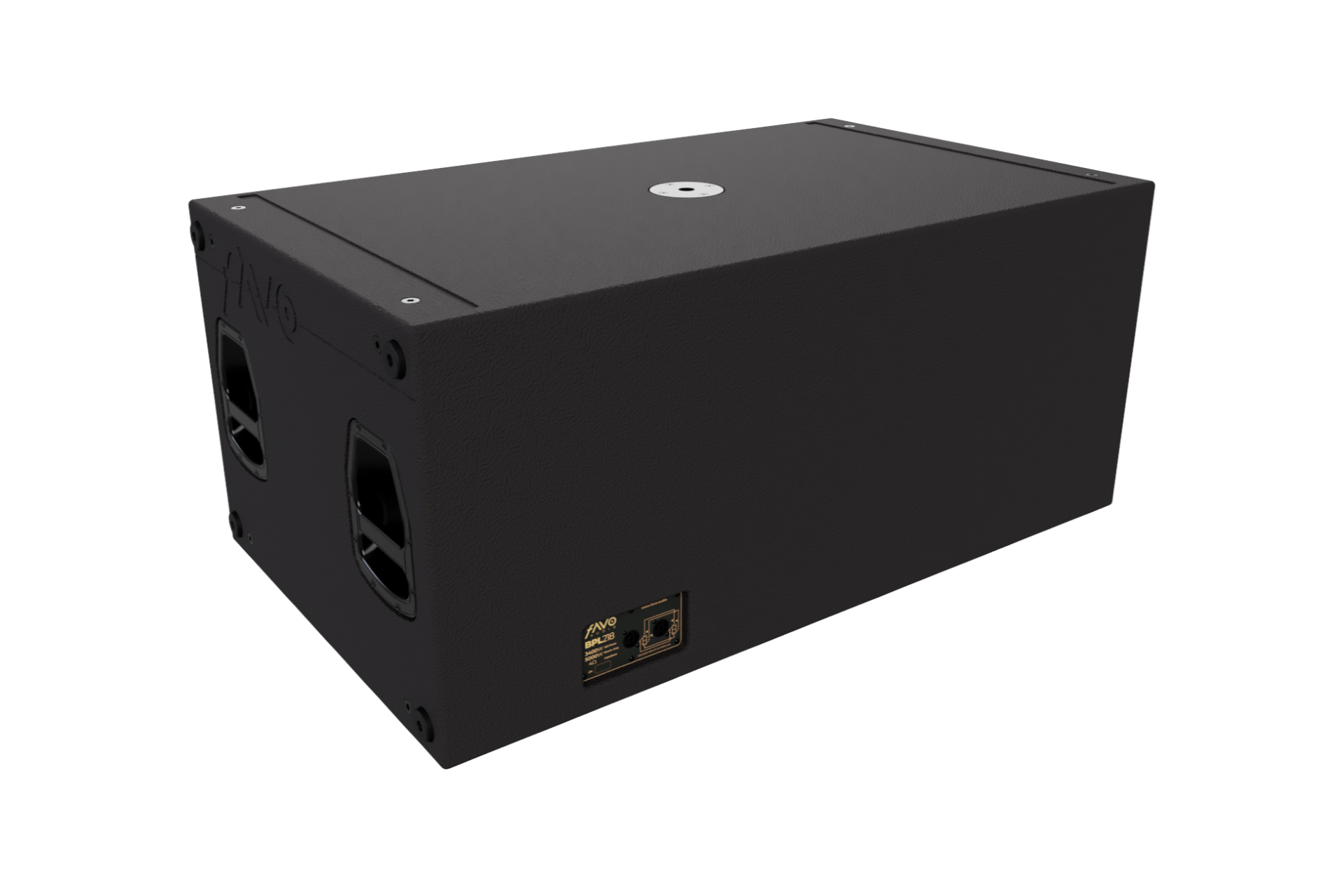

FAVO BPL218 Passive Subwoofer

This dual 18” concert-grade shines with remarkable low-frequency extension with exceptionally low distortion at the deepest bass notes. Its frequency response and clarity deliver precision, providing bass you can trust—and feel—in every performance. Its robust Polyurea coating ensures exceptional weather resistance, providing reliable protection in outdoor environments. Engineered with touring in mind, it combines great acoustic performance with a compact, transport-friendly design. Supporting both standard and cardioid configurations, it includes stacking and transport features optimized for quick setup, making it ideal for outdoor festivals, touring, and demanding fixed installations.

Yêu cầu tư vấn
Xem các dự án
This high-performance subwoofer features two 18” drivers with 4.5” voice coils, high motor strength, and extreme excursion capabilities for accurate low-frequency reproduction at high SPL. It handles up to 3400W AES and operates within an extended frequency range of 30Hz to 140Hz (-10 dB), ensuring deep, impactful bass. The laminar port design minimizes turbulence and distortion, maintaining clarity even at maximum output. Optimized for use with FAVO MD amplifiers and System Engineer Software, it is the standard subwoofer platform for all FAVO concert sound systems.
Whether you’re moving crowds at a festival or enhancing a fixed installation, this subwoofer delivers bass you can trust—and feel.
APPLICATIONS:
  • Live concerts and music festivals requiring deep, high-SPL low-frequency reinforcement
  • Fixed installations in performance venues, arenas and large scale event spaces
  • Modular touring systems with cardioid or omnidirectional subwoofer configurations
  • Integration into FAVO professional PA systems with dedicated amplifier and DSP control

FEATURES:

  • 2x 18″ Speakers with 4.5″ voice coil, huge motor strenght and extreme high excursion
  • Extended frequency range down to 30Hz
  • Laminar bass reflex ports – no air chuffing noise from ports

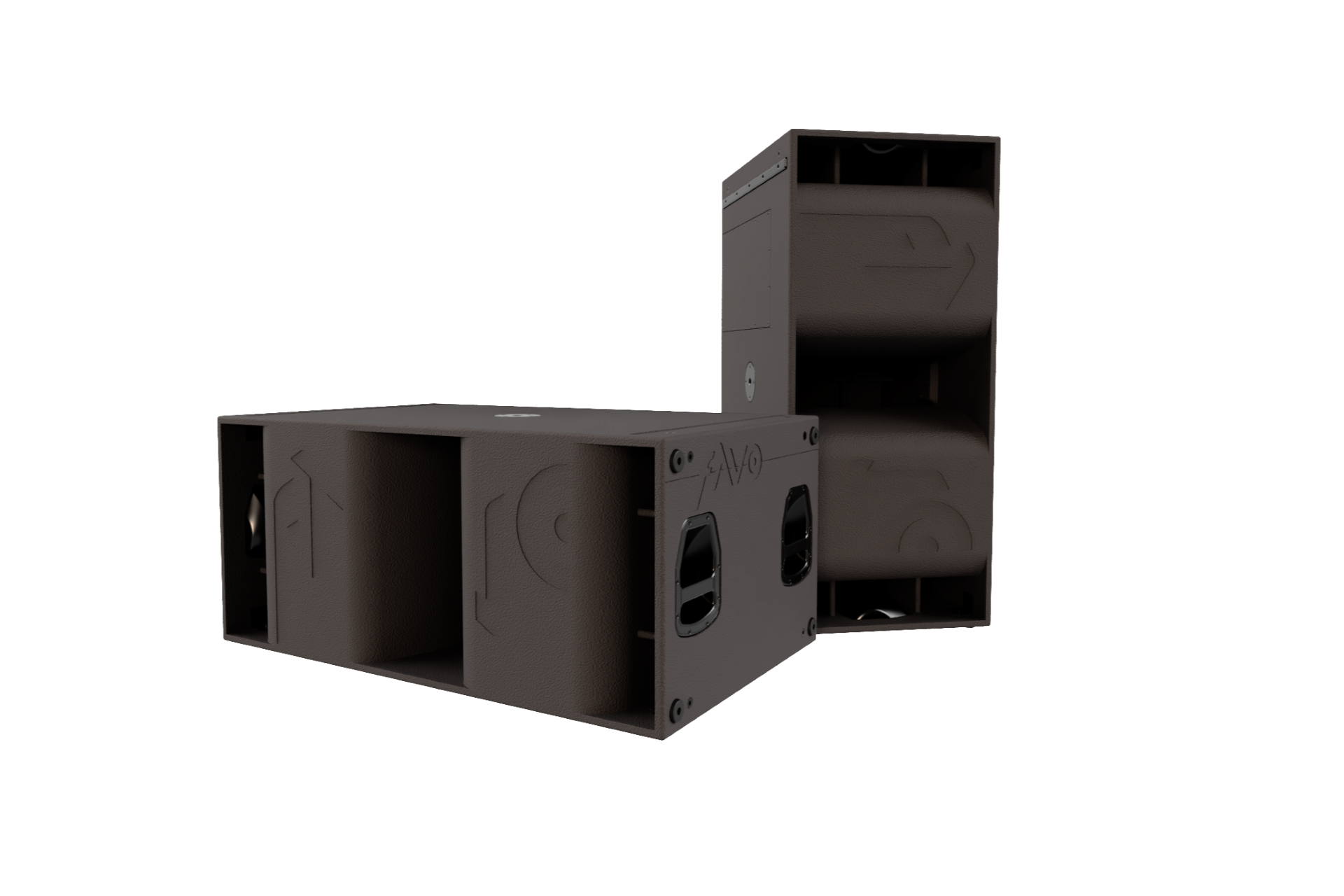

  • Modular design for Cardioid or other subwoofer pattern control configurations
  • M20 thread to use with full range speaker pole and dollys, M10 Rigging points for hanging
  • System integration with FAVO MD amplifiers and System Engineer Software
  • EUR Pallet width – easy and smart transport

Technical specifications

Frequency Range (-3dB)34Hz – 110Hz *
Frequency Range (-10dB)30Hz – 140Hz *
Recommended Amplifier Power RMS5000W at 4Ω
Recommended Amplifier ModelFAVO MD4420
or
FAVO GND4420
(up to 2pcs BPL218 modules per channel)
Nominal Speaker Power AES/Continuous/Peak3400W / 6800W /
SPL Sensitivity (1W/1m)103dB
Maximum SPL (peakCF2 6dB)141dB **
Maximum SPL (peakCF4 12dB)147dB **
DirectivityOmnidirectional or cardioid, depending on the number of modules in the set ***
SpeakersDouble B&C Speakers 18″, 4.5″ voice coil, Xmax 16mm, neodymium magnet, Aluminum Coil, High Bl
Impedance4Ω
Dimensions (HxWxD)520mm x 1180mm x 700mm
Weight89kg
Transport Platform118cm x 72cm, up to three units (stackable)
Protective CoverDurable fabric cover
*Frequency Range through dedicated DSP processor with product-specific settings.
**Calculated Max SPL (peak) at 1m in half-space conditions using different Crest factor signals.
***With dedicated preset and physical module arrangement.

Environmental Durability & Finish

All FAVO loudspeaker systems are built of 13-ply Baltic birch plywood and protected with a polyurethane (Polyurea) coating with UV filters, providing high resistance to mechanical damage, moisture, and long-term exposure to sunlight. The driver diaphragms are impregnated on both sides, reducing the impact of changing weather conditions on operational stability. FAVO systems are designed for safe use both in outdoor installations and in environments with elevated humidity

5-year warranty

FAVO provides a 5-year warranty on all speaker sets, covering manufacturing defects. In the event of a failure, we provide the fastest possible technical support and offer post-warranty service.
