For a big sound from a small speaker, the Equinox Mk5 will astonish and surprise. With finesse and power punching well above its weight, it can be tucked-away while still filling the room with sound.
Deceptively compact, the Equinox Mk5 are ideal for 2 channel hi-fi – allowing you to play your favorite records, CD’s or digital files with clarity – but can also be used on stands as side or rear surround speakers in a Krix home theatre.

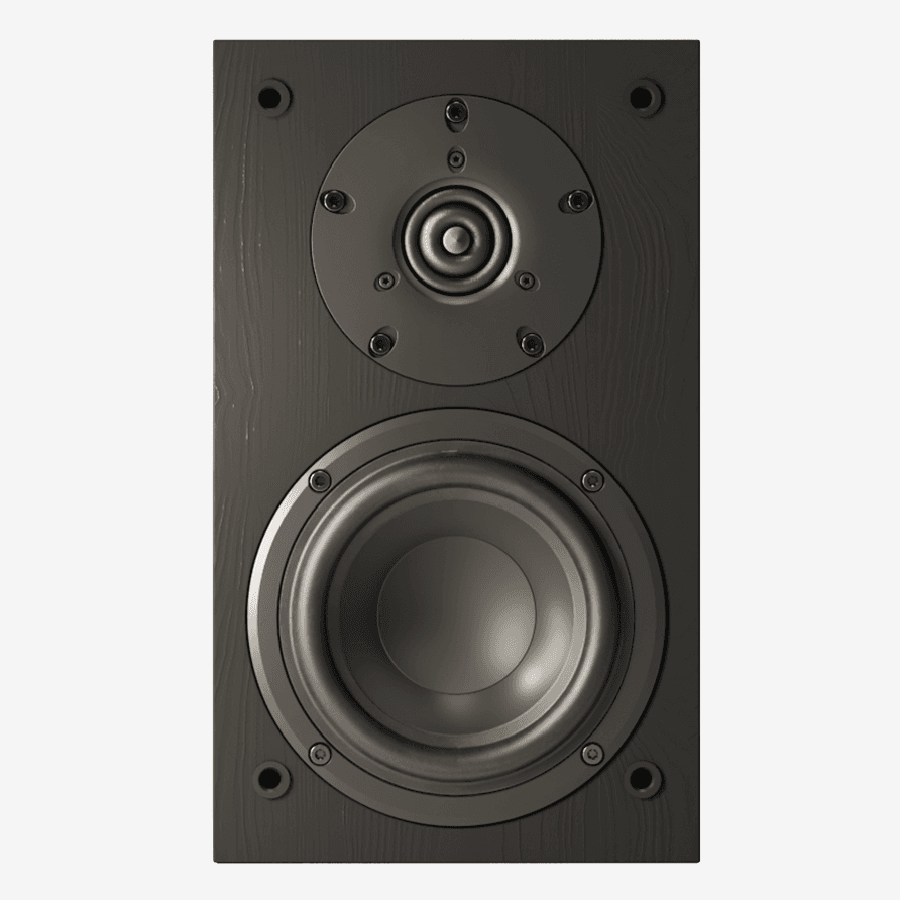

The mid-range and bass come from a high grade 130mm driver with a doped curvilinear paper cone, over-sized voice coil, and powerful magnet, while extended frequency response is delivered through a 26mm ring radiator tweeter. Combined with its bass reflex design, the result is an efficient but balanced bass sound with a revealing, detailed high end, performing well beyond the relatively small cabinet size of the speaker.
For the ultimate sound experience at home, play it through Krix.
| Frequency range | 45Hz-40kHz in room response |
| Power handling | 20 – 120 Watts RMS recommended amplifier power |
| Sensitivity | 88dB for 2.83 volts at 1 metre |
| Impedance | Nominally 6 Ohms (minimum 3.6 Ohms) |
| Configuration | 2-way |
| Enclosure type | Bass reflex, rear vented with internal bracing |
| Low frequency driver | Cast aluminium basket with a nominal 130mm (5″) doped curvilinear paper cone. 30mm (1.2″) vented magnet voice coil wound on high temperature kapton former, with copper shorting ring |
| High frequency driver | 26mm (1″) dual concentric diaphragm with wave-guide centre plug for controlled directivity. Non-reflective dual chambered magnet structure with copper shorting ring to lower distortion |
| Input terminals | Gold plated binding posts |
| Dimensions | 295mm high x 175mm wide x 235mm deep |
| Weight | 6kg each |
