Designed to offer the best value for money ratio. The CIRA series are coaxial 2-way ceiling speakers featuring exceptional intelligibility and musical performance. The TwistFix™ borderless grill design offers easy but solid assembly and a completely seamless transition from grill to ceiling. This results in a perfect blend in to its environment. The QuickFit™ installation system combined with FastCon™ connector offers lifetime stability and great installers convenience.

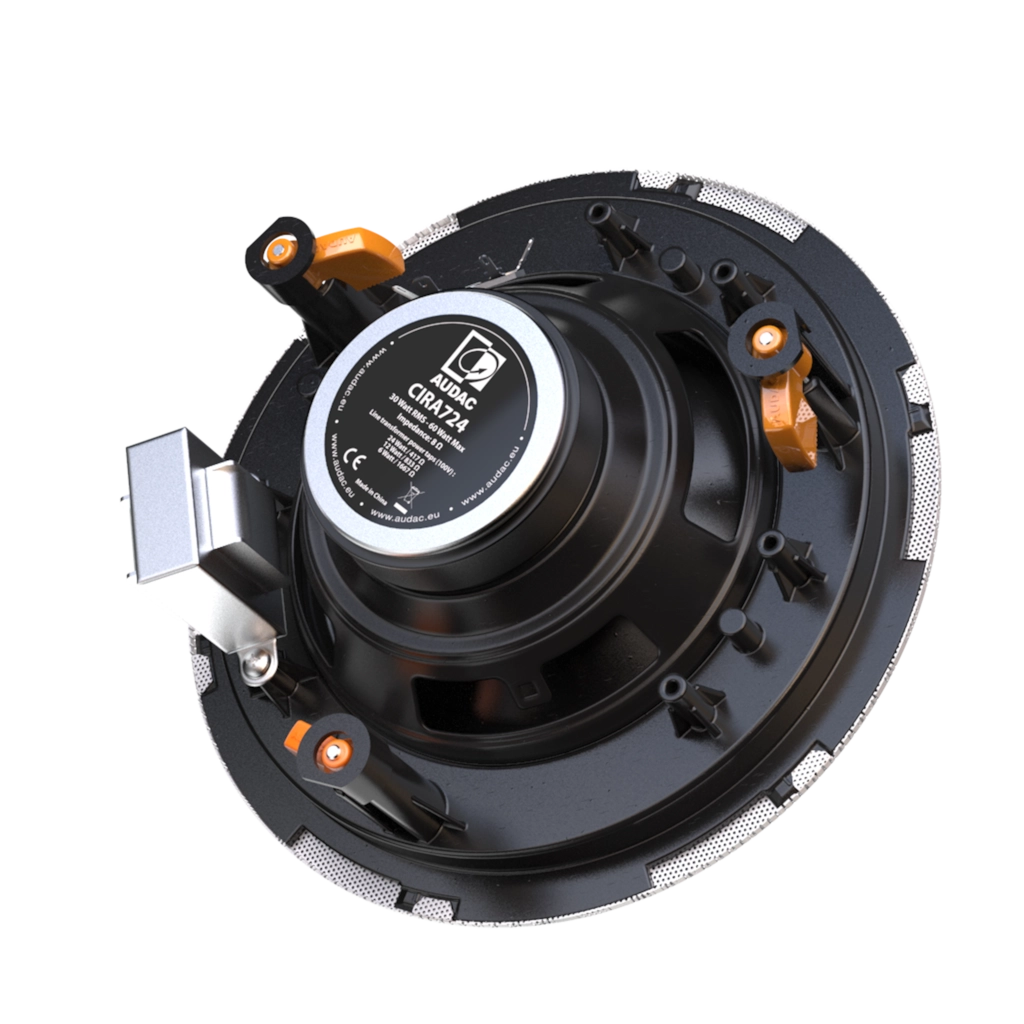

The CIRA7 features a 6.5” driver using polypropylene cone material, combined with a 1” Mylar tweeter fitted with a phase plug for excellent off axis performance. The selected materials guarantee a low distortion performance with smooth and flat frequency response. A continuous power handling of 30 Watt (RMS) and maximum power handling of 60 watt is achieved, while fitted with a multi-tapping 100V line transformer with tappings for 24W, 12W, 6W and an 8 Ohm or 16 Ohm bypass connection.
| CIRA724I/W | White version, 8Ω & 100V (RAL9016) |
| CIRA730DI/W | White version, 16 Ω (RAL9016) |
| Peak power handling | 120 W | |
| Program power handling | 60 W | |
| Continuous power (AES) | 30 W | |
| Sound Pressure (Max. W/1m) | @ 100 V | 103 dB |
| Sensitivity (1W/1m) | 88 dB | |
| Frequency | Response (± 3 dB) | 55 Hz – 20 kHz |
| Speaker type | 2-way coaxial | |
| Impedance | 8 Ω (CIRA724) | |
| 16 Ω (CIRA730D) | ||
| Frequency | Range (-10 dB) | 45 Hz – 20 kHz |
| Dispersion | Conical | 150° |
| Connectors | Multi-tap Fast-con™ connections | |
| Drivers | HF | 1” |
| LF | 6.5¼” | |
| Line Transformer Tappings | 1 | 24 W – 417 Ω (CIRA724) |
| 2 | 12 W – 833 Ω (CIRA724) | |
| 3 | 6 W – 1667 Ω (CIRA724) | |
| Cut-out measurement | 200 mm (Ø) |
| Weight | 1.45 kg (CIRA724) |
| 1.35 kg (CIRA730D) | |
| Operating temperature | -20 °C ~ 60 °C |
| Construction | ABS |
| Front finish | TwistFix™ borderless finely perforated steel grill |
| Built-in depth | 78 mm (CIRA724) |
| 75 mm (CIRA730D) | |
| Mounting | QuickFit™ mounting system |
| Fixture point for safety cable | |
| Colours | White (RAL9003) (CIRA724/W& CIRA730D/W) |
| Dimensions | 224 mm (Ø) |
