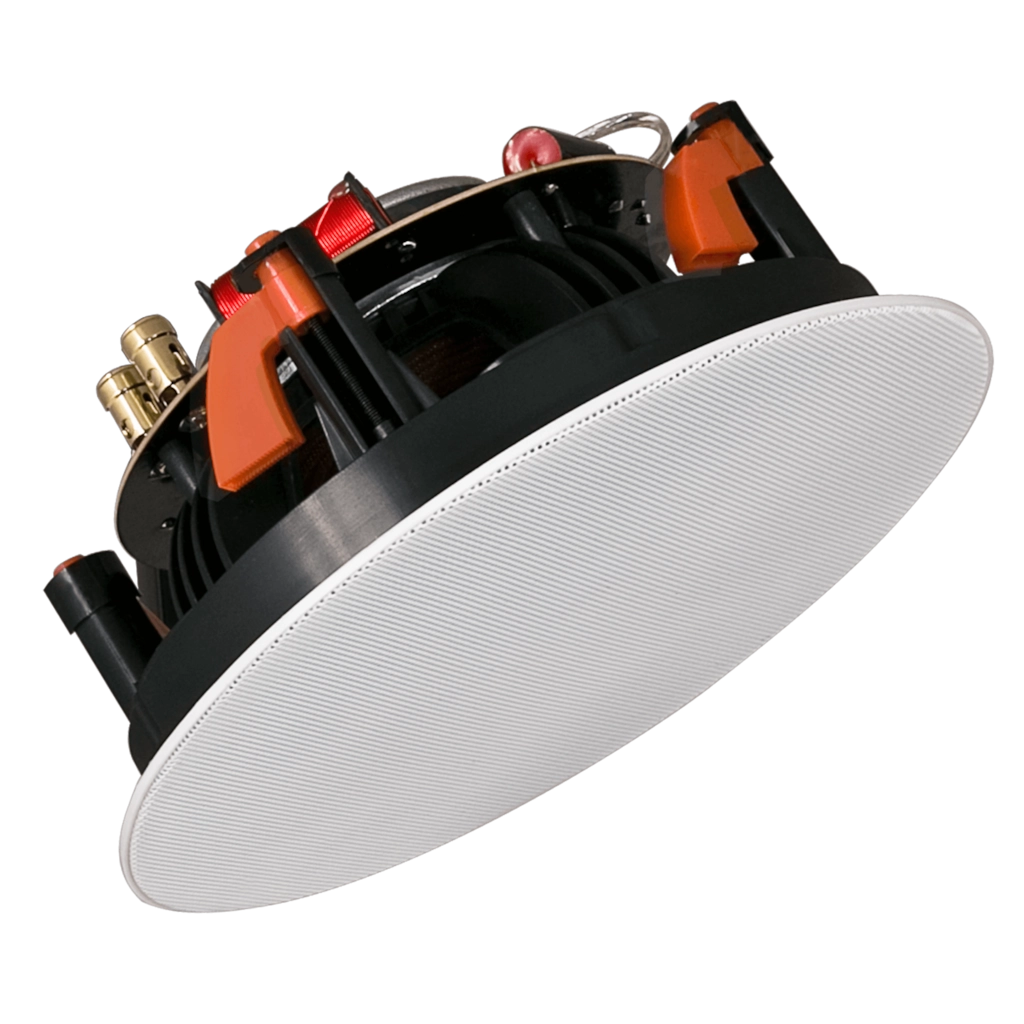

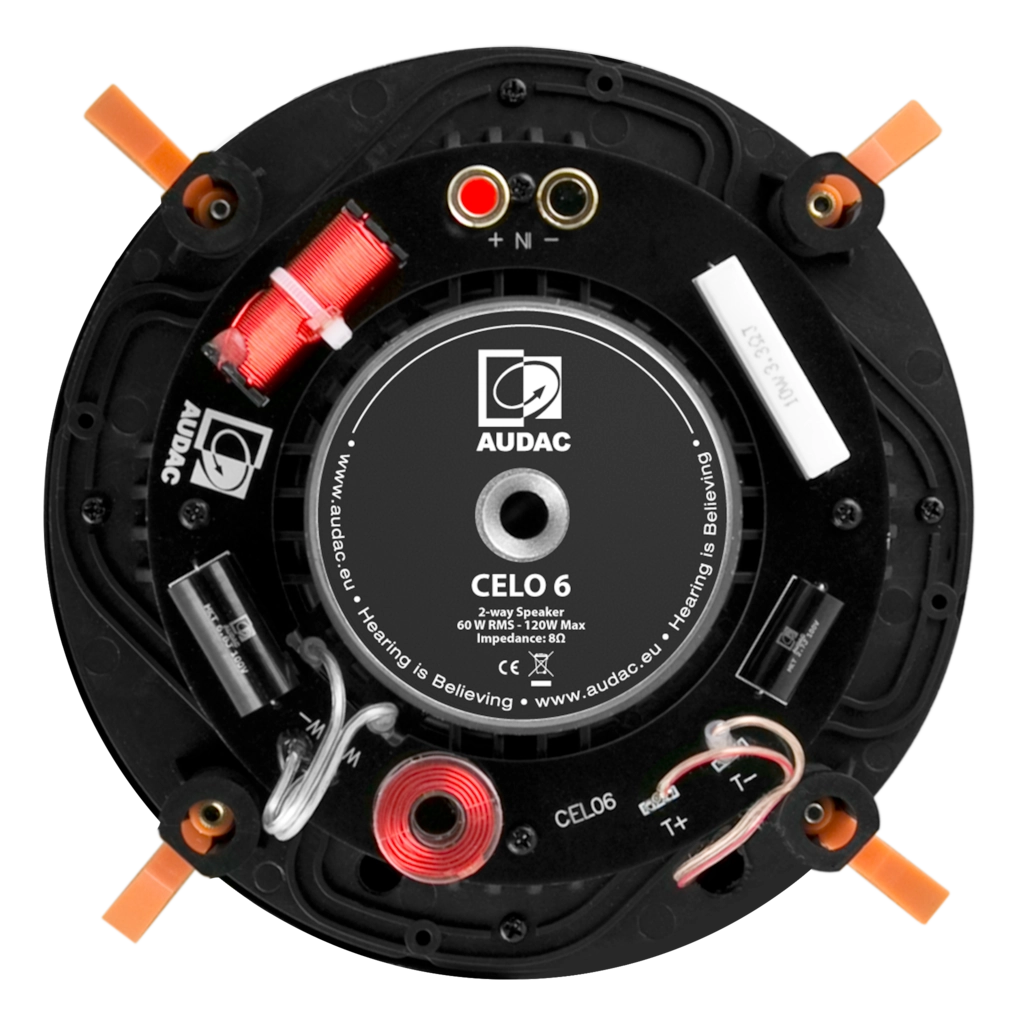

The CELO series is AUDAC‘s first High-end slim ceiling speaker series, consisting of four models which can guarantee an optimal experience for every situation and application. The CELO6 is the medium 6” model of this series. Due to its slim grill design with a very thin border of only 1 mm and a limited grill depth which extrudes from the ceiling surface by only 3.2 mm, these speakers will become nearly invisible when mounted. To make them blend in even more, the grill can be painted in the same color as the surrounding surface or an optional black grill (GLC06/B) will provide seamless integration in dark environments.
| CELO6I/W | White version – 8Ω (RAL9016 + Logo) |
| Speaker type | 2-way coaxial | |
| Peak power handling | 240 W | |
| Program power handling | 120 W | |
| Continuous power (AES) | 60 W | |
| Impedance | 8 Ω | |
| Sensitivity (1W/1m) | 88 dB | |
| Sound Pressure (Max. W/1m) | 106 dB | |
| Frequency | Response (± 3 dB) | 55 Hz – 20 kHz |
| Range (-10 dB) | 44 Hz – 20 kHz | |
| Crossover | Type | Passive built-in |
| Frequency | 3 kHz | |
| Dispersion | Conical | 140° |
| Connectors | Gold-Con™ spring clamps | |
| Drivers | HF | 1” Aluminium membrane |
| LF | 6” Aluminium membrane | |
| Dimensions | 230 x 103 mm (Ø x D) | |
| Weight | 1.650 kg | |
| Construction | ABS | |
| Cut-out measurement | 205 mm (Ø) | |
| Built-in depth | 100 mm | |
| Mounting & handling | 4 Screw quick-fixing mechanism | |
| Operating temperature | -20 °C ~ 60 °C | |
| Colours | Black frame & white grill | |
| Accessories | Included | Cut-out template |
| GLC06I/W – White grill + logo (RAL9016) | ||
| Optional | WTR24 – 24W 100V line transformer | |
| GLC06I/B – Black grill + logo (RAL9005) | ||
| GLC06/P – Paintable grill | ||
