The ATEOxM series are extraordinary loudspeakers especially designed for fixed installation in- & outdoor applications, ranging from modern residential applications to the most demanding designer applications in environments such as retail stores, pubs, restaurants or even clubs.
The ATEO4M is the 4” version with a 1” dome tweeter and a 4” Mid /Low-frequency driver, ensuring a true-to-nature, high-fidelity reproduction of music and speech, whilst maintaining an ultra-flat frequency response. It features a stunningly designed and elegant-looking weatherproof ABS housing which is fitted with high-quality components. What makes this loudspeaker range so exceptional is the specially designed mounting system using the weatherproof CleverMount+™ technology, making the loudspeaker cabinet flow together with the mounting system providing great ease for installing the loudspeaker in one good-looking entity. This design loudspeaker forms the ideal solution for fixed-install in- & outdoor applications.
| ATEO4M/B | Black version – 8Ω and 100V |
| ATEO4M/W | White version – 8Ω and 100V |
| ATEO4DM/B | Black version – 16Ω |
| ATEO4DM/W | White version – 16Ω |
| Speaker type | Full range | |
| Peak power handling | 140 W | |
| Program power handling | 70 W | |
| Continuous power (AES) | 35 W | |
| Impedance | 8 Ω (ATEO4M) | |
| 16 Ω (ATEO4DM) | ||
| Incline angle | Left | 30° |
| Right | 30° | |
| Bottom | 30° | |
| Top | 5° | |
| Sensitivity (1W/1m) | 86 dB | |
| Sound Pressure (Max. W/1m) | @ 8 Ω | 101 dB |
| @ 100 V | 100 dB | |
| Frequency | Response (± 3 dB) | 100 Hz – 20 kHz |
| Range (-10 dB) | 65 Hz – 20 kHz | |
| Dispersion | Horizontal | 130° |
| Vertical | 130° | |

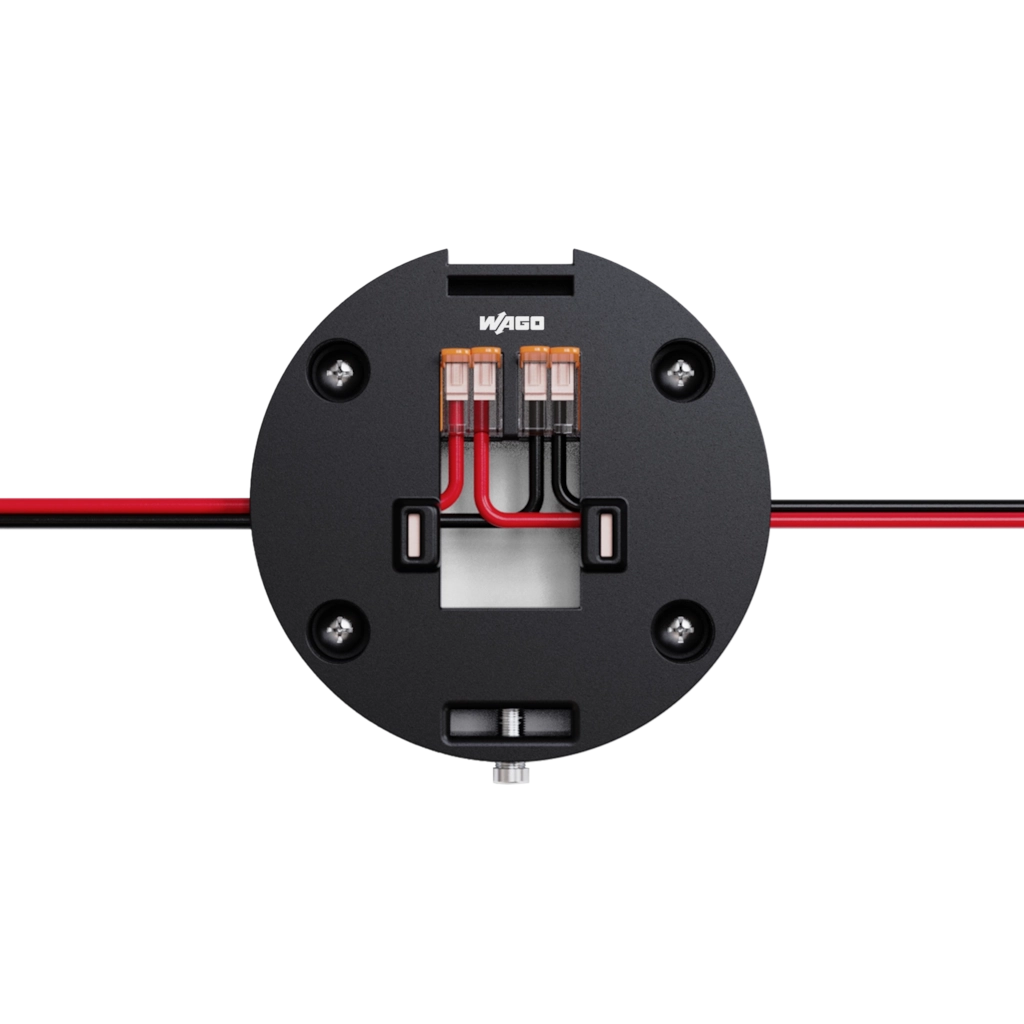

| Connectors | 2 x WAGO terminal block connections | |
| Drivers | 1” Dome tweeter | |
| 4” MF / LF Woofer | ||
| Line Transformer Tappings | 1 | 208 Ω – 100 V / Not used – 70 V / 24 W |
| 2 | 417 Ω – 100 V / 24 W – 70 V / 12 W | |
| 3 | 833 Ω – 100 V / 12 W – 70 V / 6 W | |
| 4 | 1667 Ω – 100 V / 6 W – 70 V / 3 W | |
| Ingress Protection rating | IP66 | |
| Dimensions | 136 x 244 x 153 mm (W x H x D) | |
| Weight | 2.050 kg | |
| Operating temperature | -20 °C ~ 60 °C | |
| Accessories | Included | Allen-key wrench |
| Mounting | Weatherproof CleverMount+™ | |
| Construction | ABS | |
| Front finish | Aluminium grill with hydrophobic cloth | |
| Colours | Black (RAL9005) (ATEO4M/B, ATEO4DM/B) | |
| White (RAL9003) (ATEO4M/W, ATEO4DM/W) | ||
