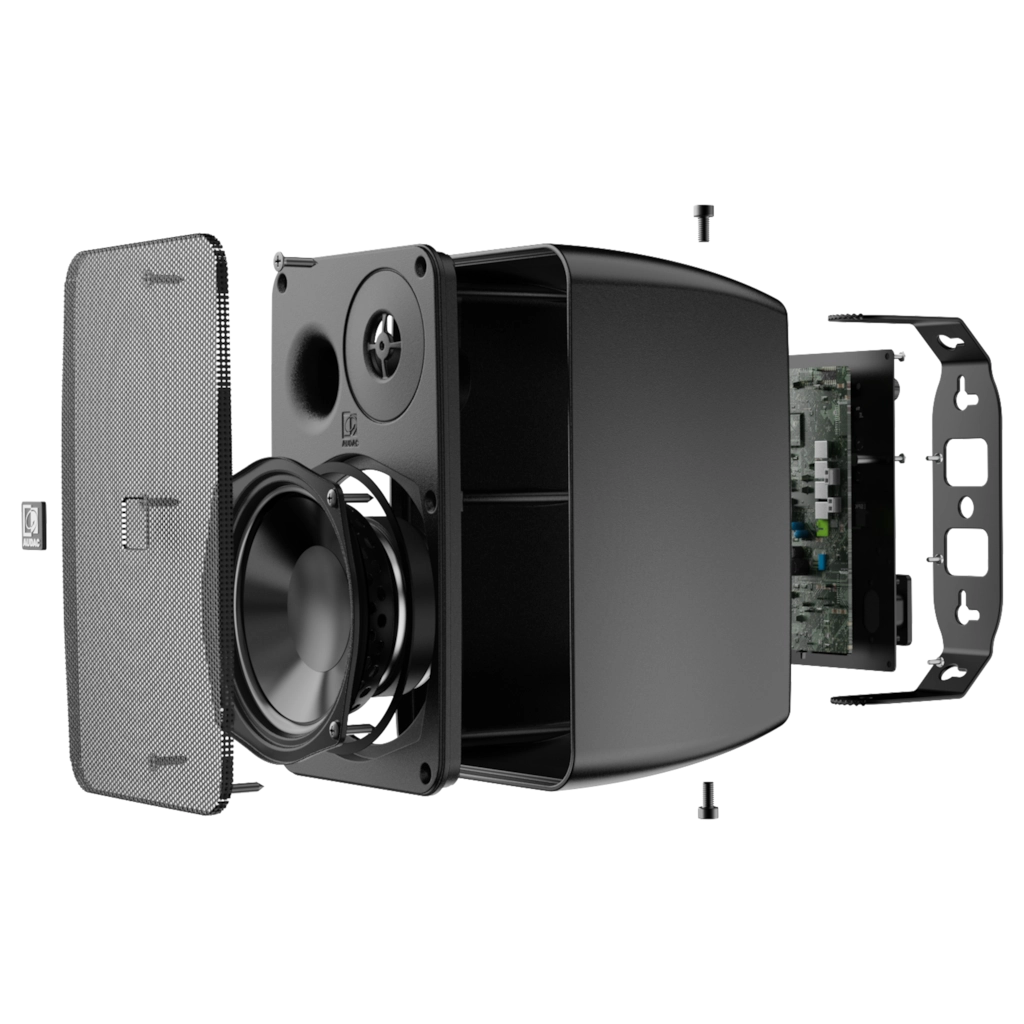

The ARES5A is a 2-way active speaker system consisting of an active and passive unit to be linked with each other. It offers an easy and flexible solution for a wide variety of applications. The 2-way loudspeaker is carefully constructed out of high quality components resulting in a 5 ¼” woofer and a ½” high frequency tweeter. This craftmanship in combination with an integrated DSP is creating an extremely clear and powerful sound experience for a wide range of applications.
| ARES5A/B | Black version |
| ARES5A/W | White version |
| Continuous power (AES) | 2 x 20 W | ||
| Program power handling | 2 x 40 W | ||
| Sensitivity (1W/1m) | 89 dB | ||
| Sound Pressure (Max. W/1m) | 105 dB | ||
| Frequency | Response (± 3 dB) | 80 Hz – 20 kHz | |
| Power | Consumption | Nominal (1/8 MUP) | 11.3 W |
| Standby | < 0.35 W | ||
| Inputs | Balanced Stereo | Connector | 2 x 3-pin Euro Terminal Block (Pitch – 3.81 mm) |
| Unbalanced Stereo | Connector | 3.5 mm Jack (2x) | |
| Remote | Connector | RJ45 | |
| Power | Supply | 100 ~ 240 V AC / 50 ~ 60 Hz | |
| Connector | IEC C7/C8 power inlet | ||
| Connectors | Remote control | RJ45 | |
| Outputs | Passive loudspeaker | 2-pin Euro Terminal Block (Pitch – 5.08 mm) | |
| Drivers | HF | 13 mm (PEI tweeter) | |
| LF | 5 1/4″ (Polypropylene) | ||
| Dispersion | Horizontal | 210° (Average -6 dB / 100 Hz – 10 kHz) | |
| Vertical | 205° (Average -6 dB / 100 Hz – 10 kHz) | ||
| Dimensions | 150 x 240 x 146 mm (W x H x D) (excl bracket) & 150 x 240 x 194 mm (incl bracket) | |
| Weight | 3.5 kg (pair) | |
| Colours | Black (RAL9003) | |
| White (RAL9005) | ||
| Construction | ABS | |
| Front finish | Powder coated steel grill with lining | |
| Bracket | Powder Coated steel | |
| Construction | Impact & UV resistant ABS | |
| Colours | Black (RAL9005) (ARES5A/B) | |
| White (RAL9003) (ARES5A/W) | ||
| Accessories | Included | Mounting bracket |
| Power cable | ||
| 3.5 m connection cable speaker | ||
| Wall screws and plugs | ||
| Optional | WP205 – ARES5A wall panel | |
Education |
Retail |
Bars & Restaurants |
Corporate |
Discover more functionality of the ARES speaker series with this block schematic.

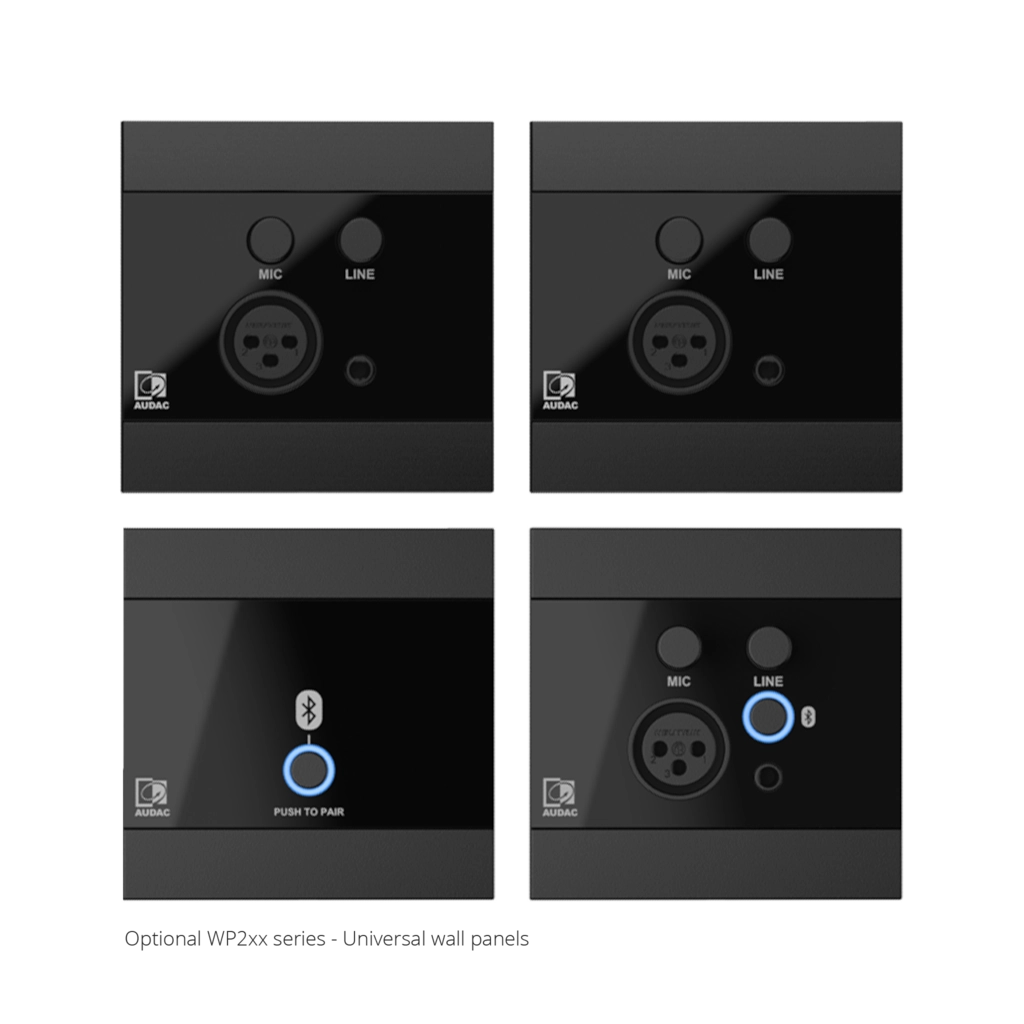

A remote input connection implemented through an RJ45 connector allows wall panel connections, expanding the system through remote input modules. Control up to 4 ARES5A sets (8 speakers) with the WP2xx series remote wall mixers.
